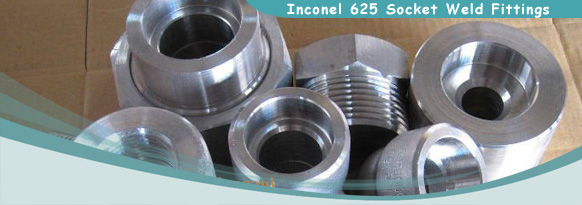

Inconel 625 Socket Weld Fittings


Inconel 625 Socket Weld Fittings Manufacturers

Manufacturer, Supplier & Stockists Of Inconel 625 Socket Weld Fittings, Tee, Elbow , reducers, Cross, Stubent, Pipe Cap, Stub Ends, Couplings, Nipples, pipe bends, Union, Stainless Steel Pipe Fittings, Carbon Steel Pipe Fiitings & Other Pipe Fittings in India.

We Offer High Quality Inconel 625 Socket Weld Fittings, & other Pipe Fittings in Stainless steel, Carbon steel, Alloy Steel, High Nickel Alloy & Copper Nickel.

Inconel 625 Socket Weld Fittings , Forged Fittings, Buttweld Fittings & Other Pipe Fittings Manufacturer, supplier & stockist in India

Standard designations for High Nickel alloys

Standard (ASME/ANSI B16.11, MSS-SP-97, MSS-SP-79, JIS B2316, BS 3799etc)
Process Free forging, plate cutting .forged
Size 1/8"-4" (DN6-DN100)
Connect Type Welded, threaded, BW, SW
Shape Equal
Material Nickel Alloy: ASTM B 564 / 160 / 472 Nickel 200 201 Pipe Fittings , alloy 255 20 31 6xn Pipe Fittings , monel 400 k500 404 400a 30c Pipe Fittings , inconel 600 601 625 718 783 690 x750 Pipe Fittings , incoloy 800 800h 800ht 825 901 925 6mo 25-6mo Pipe Fittings , hastelloy b b2 b3 c c4 c22 c276 c2000 x g-30 Pipe Fittings , nimonic 80a 90 263 Pipe Fittings

TYPES OF SOCKET WELD FITTINGS BY CLASS, SIZE AND WALL THICKNESS

Description Class Designation
3000 6000 9000
Elbows 45 and 90 degrees,
Tees, Crosses, Couplings, lateral
Half-Couplings,Uniouns, reducer inserts,
End or Pipe Caps
½ – 4 ½ – 2 ½ – 2
½ – 4 ½ – 2 ½ – 2
½ – 4 ½ – 2 ½ – 2
Pipe Size
by Wall Thickness
SCH 80 & XS SCH 160 XXS

Summary Of Inconel 625 Socket Weld Fittings

enquiry-button

What is Inconel 625 Socket Weld Fittings

Inconel 625 is an alloy essentially consisting of nickel, chromium and molybdenum with exceptional resistance to pitting and corrosion cracking. The alloy has extraordinary mechanical properties at immensely low ans high temperatures. The alloy has high rupture and tensile strength with eminent weldability and brazeability. The alloy has excellent corrosion resistance to inorganic acids such as sulfuric acid, hydrochloric acid, phosphoric acid and nitric acid. The immense level of nickel in the alloy empowers it to defy severe corrosive environments such as neutral salts, alkaline media and sea waters.

There are many different stainless steel grades in this category which have their unique characteristics and properties in different conditions and environments.

Stainless Steel Grades: WP 304 Stainless Steel Socket Weld Pipe Fittings, WP 304L Stainless Steel Socket Weld Pipe Fittings, WP 310 Stainless Steel Socket Weld Pipe Fittings, WP 310S Stainless Steel Socket Weld Pipe Fittings, WP 316 Stainless Steel Socket Weld Pipe Fittings, WP 316L Stainless Steel Socket Weld Pipe Fittings, WP 317 Stainless Steel Socket Weld Pipe Fittings, WP 317L Stainless Steel Socket Weld Pipe Fittings, WP 321 Stainless Steel Socket Weld Pipe Fittings, WP 321H Stainless Steel Socket Weld Pipe Fittings, WP 347 Stainless Steel Socket Weld Pipe Fittings, WP 347H Stainless Steel Socket Weld Pipe Fittings, WP 904L Stainless Steel Socket Weld Pipe Fittings, WP 254 SMO Stainless Steel Socket Weld Pipe Fittings

Inconel Grades: Inconel 600 Socket Weld Fittings, Inconel 601 Socket Weld Fittings, Inconel 625 Socket Weld Fittings

A Socket Weld is a pipe attachment detail in which a pipe is inserted into a recessed area of a Valve, fitting or flange. In contrast to buttweld fittings, Socket Weld fittings are mainly used for small pipe diameters (Small Bore Piping); generally for piping whose nominal diameter is NPS 2 or smaller.To join pipe to Valves and fittings or to other sections of pipe, fillet-type seal welds be used. Socket-welded Joints construction is a good choice wherever the benefits of high leakage integrity and great structural strength are important design considerations.

Fatigue resistance is lower than that in butt-welded construction due to the use of fillet welds and abrupt fitting geometry, but it is still better than that of most mechanical joining methods.

MD Expots LLP is Manufacturer, Stockists & Supplier of premium quality range of Inconel 625 Socket Weld Fittings & other pipe fittings Flanges that are manufactured under the expert guidance of our diligent workforce.we are highly experienced company in Inconel 625 Socket Weld Fittings & other pipe fittings Flanges. our Inconel 625 Socket Weld Fittings & other Fitting products are manufactured using quality material and go through a rigorous quality check at all stages of production to ensure quality. Designed in compliance with international quality standards, these Inconel 625 Socket Weld Fittings are corrosion resistance, sturdy and durable.we also supply Inconel 625 Socket Weld Fittings & other pipe fittings Flanges in customized size.

N06625 | 2.4856 | NICR22MO9NB | NA 21 | ХН75МБТЮ | ЭИ602 | NCF 625 | NC22DNB4M

STANDARDS DESIGNATION
ASTM B 564

enquiry-button

Inconel 625 Socket Weld Fittings current Price

enquiry-button

Inconel 625 Socket Weld Fittings ready stock

Inconel 625 Socket Weld Fittings manufacturerMD Expots LLP stocks Inconel 625 Socket Weld Fittings & other pipe fitting flanges at locations throughout India. We maintain a large inventory of Inconel 625 butt welding pipe fittings, Inconel 625 forged pipe fittings and Inconel 625 flanges. we also have huge stock of Inconel 625 Reducer, Inconel 625 Concentric Reducers, Inconel 625 Eccentric Reducers, Inconel 625 Elbow, Inconel 625 Elbows – Long Radius, Inconel 625 Elbows – Short Radius, Inconel 625 3D Elbow, Inconel 625 5D Elbow, Inconel 625 90° Elbows, Inconel 625 45° Elbows, Inconel 625 Tee, Inconel 625 Cross, Inconel 625 Stub Ends and Inconel 625 Pipe Bends, Inconel 625 180° LR Return Bends, Inconel 625 180° SR Return Bends, Inconel 625 Couplings, Inconel 625 Unions, Inconel 625 Pipe Nipples. Our stock of Inconel 625 flange products include threaded flange, weld neck flange, slip on flange, socket weld flange, blind flange, lap joint flange, plate flange.

We also have our sales representatives to understand the requirements of our clients, we maintain ready stock of Inconel 625 Socket Weld Fittings, Inconel 625 Socket Weld Fittings & Inconel 625 flanges, in Cities like Abu Dhabi, Riyadh, Manama, Muscat, Doha, Dubai, Damascus, Khartoum, Beirut, Jeddah, Aleppo, Alexandria, Algiers, Amman, Mosul, Cairo, Baghdad, Dammam, Casablanca, Basra, Mecca, Tripoli, Rabat, Sana’a, Arbil, Hilla, Port Said, Marrakech, Medina, Al Hudaydah, Omdurman, Damietta, Homs, Kafr Dawar, Benghazi, Fez, Bahri, Nouakchott, Sulaymaniyah, Safi, Zarqa, Oran, Kirkuk, Ismailia, Tunis, Agadir, Tangier, Sharjah, Shibin El Kom, Misratah, Matrah, Aden, Najaf, Karbala, Latakia, Sousse, Meknes, Gaza, Fallujah, Aswan, Kassala, Al-Ubayyid, Sohag, Kuala Lumpur, Penang, Kuching & many more…

Ready inventory Of Inconel 625 Socket Weld Fittings & other Pipe Fittings At trident Steel engg.:-

enquiry-button

Special offer on Inconel 625 Socket Weld Fittings

MD Expots LLP Manufacture a wide range of  Inconel 625 Socket Weld Fittings (ASME B16.9, DIN, EN), Inconel 625 Flanges(ASTM A182, ASTM A240, ASME, DIN, EN), Inconel 625 Forged Fittings (ASTM A182, ASME, DIN, EN), Inconel 625 Reducer, Inconel 625 Elbow, Inconel 625 Long/Short Radius Elbows, Inconel 625 Compression Fittings, Inconel 625 Single Ferrule Fittings, Inconel 625 Double Ferrule Fittings, Inconel 625 Fittings Exporter in India, Inconel 625 Tee’s, Inconel 625 Stub Ends, Inconel 625 Double Flanged Fittings, Inconel 625 Fabricated Fittings, Threaded Inconel 625 Fittings, NPT Fittings, SS 304/304L Fittings, SS 316/316L Fittings, SS 316Ti Fittings, Inconel 625 U Bends, Inconel 625 Reducers, Inconel 625 5D/3D Elbow, Inconel 625 Socket Weld Fittings & Inconel 625 Flanges. These industrial fittings are available in different dimensions and specifications to meet the requirements of our valued customers worldwide,MD Expots LLP is leading Manufacturer of Inconel 625 Socket Weld Fittings & Inconel 625 Flanges in INDIA since Five Decades,MD Expots LLP ranks in Top Ten company in INDIA engaged in manufacturing of Inconel 625 Socket Weld Fittings & Inconel 625 Flanges, MD Expots LLP is ISO-9001:2008, 1400;2004, 18001:2007 certified organisation.

We at MD Expots LLP Offer you 5 % Discount on Inconel 625 Socket Weld Fittings and also on other products like Stainless Steel 304, Stainless Steel 316, Stainless Steel 317L, Stainless Steel 347, Stainless Steel 310, Inconel 600, Inconel 625, Incoloy 825, Monel 400, Monel K-500 , Monel R-405, Hastelloy C276, Hastelloy C22, Duplex Steel 2205, Super Duplex Steel 2507, Alloy steel, Carbon Steel etc.

Inconel 625 Socket Weld Fittings Application

Application Industry:

Inconel 625 Socket Weld Fittings manufacturer

  • Inconel 625 Socket Weld Fittings uses in Oil and Gas Pipeline
  • Inconel 625 Socket Weld Fittings uses in Chemical Industry
  • Inconel 625 Socket Weld Fittings uses in Plumbing
  • Inconel 625 Socket Weld Fittings uses in Heating
  • Inconel 625 Socket Weld Fittings uses in Oil & Gas Industry
  • Inconel 625 Socket Weld Fittings uses in Water Supply Systems
  • Inconel 625 Socket Weld Fittings uses in Paper & Pulp Industry
  • Inconel 625 Socket Weld Fittings uses in Power Plant
  • Inconel 625 Socket Weld Fittings uses in Fabrication Industry
  • Inconel 625 Socket Weld Fittings uses in General purpose applications
  • Inconel 625 Socket Weld Fittings uses in Food Processing Industry
  • Inconel 625 Socket Weld Fittings uses in Structural Pipe
  • Inconel 625 Socket Weld Fittings uses in Heat Exchangers
  • Inconel 625 Socket Weld Fittings is Also used for other Industrial purpose etc.

enquiry-button

Inconel 625 Socket Weld Fittings availability worldwide

Inconel 625 Socket Weld Fittings manufacturer

We are Experts in exporting Inconel 625 Socket Weld Fittings to over 45 countries including UAE, UK, Dubai, Iran, Iraq, Qatar, Bahrain, Oman, Yemen, Lebanon, Jordan, Saudi Arabia, Malaysia, Indonesia, Singapore, Australia, New Zealand, USA, Canada, Mexico, Brazil, Netherlands, Germany, Italy, Spain, Serbia, Kuwait, Peru, Nigeria, Poland, South Africa, Denmark, Turkey, Egypt, Venezuela, Kuwait, Madagascar, Angloa & Srilanka & are major pipe Fittings & Flanges Suppliers in Saudi Arabia etc.

Our ready stock of Inconel 625 Socket Weld Fittings is also available in top countries such as Dubai, United States, United Arab Emirates, Indonesia, Israel, Thailand, Vietnam, Kuwait, United Kingdom, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Saudi Arabia, Brazil, Colombia, Iran, Italy, Denmark etc. who can help you to buy Inconel 625 Socket Weld Fittings Pipe fittings and joints and can provide you all the information as per your requirements.

Countries & Cities We Serve

Inconel 625 Socket Weld Fittings Statistics

Inconel 625 Socket Weld Fittings Statistic

Useful information of Inconel 625 Socket Weld Fittings

MD Expots LLP focus on fitting manufacturing & Suppling, main products are Buttweld fitting, Socket fitting, Threaded Fitting, Flange according to GB 12459, ASME B16.9, B16.11, B16.5, MSS SP-75, SP-44, AWWA, DIN, JIS, etc, size range from DN 15 to DN 2000, Thikness up to 100mm, material cover stainless steel, alloy steel and carbon steel, like: WPB, P5, P9, P11, P22, P91, 304/304L, 316/316L, 317/317L, 321/321H, 347/347H, 904L, WP 254 SMO and so on.

Nickel Alloy: ASTM B 564 / 160 / 472 Nickel 200 201 Pipe Fittings , alloy 255 20 31 6xn Pipe Fittings , monel 400 k500 404 400a 30c Pipe Fittings , inconel 600 601 625 718 783 690 x750 Pipe Fittings , incoloy 800 800h 800ht 825 901 925 6mo 25-6mo Pipe Fittings , hastelloy b b2 b3 c c4 c22 c276 c2000 x g-30 Pipe Fittings , nimonic 80a 90 263 Pipe Fittings

Key Properties of Inconel Pipe Fittings and Flanges

  • Good oxidation resistance at high temperatures
  • Resistance to chloride induced stress-corrosion cracking
  • Excellent corrosion resistance to high-purity water
  • High caustic corrosion resistance
  • Good weldability under a wide range of temperatures

Some Details of Socket Weld fittings

SW Fittings are family of high pressure fittings are used in various industrial processes.

  • They are used for lines conveying flammable, toxic or expensive material where no leakage can be permitted, and for steam 300 to 600 PSI.
  • They are used only in conjunction with ASME Pipe and are available in the same size range.
  • They are used in areas where pipe-work is permanent and are designed to provide good flow characteristics.
  • They are are produced to several ASTM standards and are manufactured in accordance with ASME B16.11. The B16.11 standard covers pressure-temperature ratings, dimensions, tolerances, marking, and material requirements for forged carbon and alloy steel. Acceptable material forms are forgings, bars, seamless pipe, and seamless tubes which conform to the fittings chemical requirements, melting practices, and mechanical property requirements of ASTM A105, A182, or A350.
  • They are available in three pressure ratings: Class 3000, 6000 and 9000.
Material :
  1. Stainless Steel ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L
    ASTM A312/A403 TP304, TP304L, TP316, TP316L
  2. Carbon Steel ASTM A105, A350 LF2, A106 Gr.B, A234 WPB
Dimension : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Pressure : 3000LBS, 6000LBS, 9000LBS
Size : 1/8"~4" (DN6~DN100)

High Pressure Socket Weld Forged Fittings

Pressure Class 3000LBS, 6000LBS, 9000LBS
Products Elbow 90 Degree, Elbow 45 Degree, Tee, Cross, Union, Coupling, Half Coupling, Cap, Boss, Outlet, Welding Outlet, Insert
Dimension Specifications ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size 1/8″~4″ (DN6~DN100)

Forged Pipe Fittings Manufacturing Standards

ASTM A182 – ASME SA182 – Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings

ASME B16.9 – Factory-Made Wrought Buttwelding Fittings

ASME B16.11 – Forged Fittings, Socket – Welding and Threaded

MSS SP-43
 – Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications

MSS SP-95 – Swage(d) Nipples and Bull Plugs

BS3799 – Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry

Forged Socket Weld Stainless Steel Fittings

Stainless Steel – ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L

  • The material for forged stainless steel fittings conforms to ASME A182
  • The dimensions for forged stainless steel fittings conform to ASME B16.11

Buttweld Inconel Pipe Fittings

Seamless/Welded 100% Radiography Tested

Products Size
Inconel 625 Elbows – Long Radius Inconel 625 Stub Ends

Sizes 1/2″ – 48″

Inconel 625 Elbows – Short Radius Inconel 625 Crosses
Inconel 625 Reducing Elbows Inconel 625 Reducing Crosses
Inconel 625 45° Elbows Inconel 625 180° LR Return Bends
Inconel 625 Tees Inconel 625 180° SR Return Bends
Inconel 625 Tees Inconel 625 Pipe Bends / Piggable Bends
Inconel 625 Reducers Inconel 625 Couplings
Inconel 625 Concentric Reducers Inconel 625 Pipe Nipples
Inconel 625 Eccentric Reducers Inconel 625 Forged/Plate Cut Rings
Inconel 625 3D Elbow Inconel 625 End Caps
Inconel 625 5D Elbow Inconel 625 Forged / Plate Circles

High Pressure Forged Inconel Pipe Fittings

Threaded and Socket Weld Pipe Fittings

Products Size
Inconel 625 90° Elbows Inconel 625 Couplings

Sizes 1/8″ – 4″

Pressure Ratings –
2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS

Inconel 625 45° Elbows Inconel 625 Reducers
Inconel 625 Street Elbows Inconel 625 Inserts
Inconel 625 Tees Inconel 625 Caps
Inconel 625 Crosses Inconel 625 Unions

Inconel 625 Socket Weld Fittings Specifications :

Nickel Pipe Fittings Production Range

Specification ASTM B366, ASTM SB 366, ASTM B564, ASME SB564
Grade Inconel 600 (UNS N06600, Alloy 600, 2.4816), Inconel 601 (UNS N06601, Alloy 601, 2.4851), Inconel 625 (UNS N06625, Alloy 625, 2.4856), Inconel 800 (UNS N08800, Alloy 800)
Type Seamless / Welded / Fabricated
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Range ½”NB to 24″NB in Sch 10s, 40s, 80s, 160s, XXS.
Dimensions ANSI/ASME B16.9, B16.28, MSS-SP-43.

Inconel 625 Socket Weld Fittings Standards :

STANDARD INCONEL 625
UNS N06625
WERKSTOFF NR. 2.4856
EN NiCr22Mo9Nb
BS NA 21
GOST ХН75МБТЮ
OR ЭИ602
JIS NCF 625
AFNOR NC22DNB4M

MATERIALS :
Nickel Alloy Pipe Fittings
Standard: ASTM / ASME SB 564 / 160 / 472.

UNS

W.Nr

Materials

UNS N10276

DIN 2.4819

Hastelloy C276 Socket Weld Fittings

UNS N02200

DIN 2.4066

Nickel 200 Socket Weld Fittings

UNS N02201

DIN 2.4068

Nickel 201 Socket Weld Fittings

UNS N04400

DIN 2.4360

Monel 400 Socket Weld Fittings

UNS N05500

DIN 2.4375

Monel K-500 Socket Weld Fittings

UNS N06600

DIN 2.4816

Inconel 600 Socket Weld Fittings

UNS N06601

DIN 2.4851

Inconel 601 Socket Weld Fittings

UNS N06625

DIN 2.4856

Inconel 625 Socket Weld Fittings

UNS N08800

DIN 1.4876

Incoloy 800 Socket Weld Fittings

UNS N08810

DIN 1.4876

Incoloy 800H Socket Weld Fittings

UNS N08825

DIN 2.4858

Incoloy 825 Socket Weld Fittings

UNS N06022

DIN 2.4602

Hastelloy C22 Socket Weld Fittings

UNS N10665

DIN 2.4617

Hastelloy B2 Socket Weld Fittings

UNS N06455

DIN 2.4610

Hastelloy C- 4 Outlet

UNS N08020



Alloy 20 Socket Weld Fittings

Inconel 625 Socket Weld Fittings Physial Properties

DENSITY (G/CM 3) 8.44c
DENSITY (LB/IN 3) 0.305
MELTING POINT (°C) 1290 – 1350
MELTING POINT (°F) 2350 – 2460

Inconel 625 Socket Weld Fittings Chemical Composition

LEMENT INCONEL 625
NI 58.00 min
C 0.10 max
MN 0.50 max
SI 0.50 max
P 0.015 max
S 0.015 max
CR 20.00 – 23.00
NB + TA 3.15 – 4.15
CO 1.00
MO 8.00 – 10.00
FE 5.00 max
AL 0.40 max
TI 0.40 max

We Also Engaded in Offering Following Product Range:

Inconel 625 Socket Weld Fittings Inconel 625 Steel Bush Inconel 625 Nipples
Inconel 625 Return Bend Inconel 625 Orifice Fitting Inconel 625 Square Head Plugs
Inconel 625 Hex Nipple Inconel 625 Brass Fittings Inconel 625 Inserts
Inconel 625 Lateral Fittings Inconel 625 Forged fittings Inconel 625 Threaded Fittings
Inconel 625 Reducing Elbow Inconel 625 Socket Weld Fittings Inconel 625 Street Elbow
Inconel 625 Y Fittings Inconel 625 Socket Weld Flanges Inconel 625 Weld Neck Flanges

Inconel 625 RTJ Flange Inconel 625 swivel flange Inconel 625 spectacle flange
Inconel 625 WNRTJ Flange Inconel 625 Orifice flange Inconel 625 Threaded Flanges
Inconel 625 Ring Joint Flange Inconel 625 Lap joint flange Inconel 625 Slip On Flange
Inconel 625 Long weld neck flange Inconel 625 Expander flange Inconel 625 Threaded Flange
Inconel 625 paddle blind Inconel 625 Nipo Flange Inconel 625 Spectacle Blind Flange

Inconel 625 Nut Bolt Inconel 625 Rivets Inconel 625 Nails
Inconel 625 Nuts Inconel 625 U-Bolts Inconel 625 Hex Bolts
Inconel 625 Studs Inconel 625 Screws Inconel 625 Hex Screws
Inconel 625 Bolts Inconel 625 Washers Inconel 625 Square Bolts

enquiry-button

Leading manufacturers of Inconel 625 Socket Weld Fittings

We also having stock of Inconel 625 Socket Weld Fittings & other Inconel 625 Socket Weld Fittings & Inconel 625 Flanges manufactured by Erne Fittings (Austri), Metal,far (Italy), Lame S.R.l. (Italy), BKL- Thai Benkan (Thailand), BENKAN Corporation (Japan), TecnoForge (Italy), Ulma (Spain), Mega (Italy), Melesi (Italy), Interfit (France), Raccortubi S.P.A. (Italy). we are the distributor of the Of these Brands. we also have the sales representative who can provide the proper information of these Brands & about Grades, material and sizes.

We mainly stock following make :

Erne Fittings, Austria Metal far, Italy Lame S.R.l., Italy
BENKAN Corporation, Japan BKL- Thai Benkan, Thailand TecnoForge, Italy
Ulma, Spain Mega, Italy Melesi, Italy
Interfit, France Raccortubi S.P.A., Italy

Inconel 625 Socket Weld Fittings Stockyard

Inconel 625 Socket Weld Fittings stockyard Inconel 625 Socket Weld Fittings stockyard Inconel 625 Socket Weld Fittings stockyard

We have Inconel 625 Socket Weld Fittings available in our stock we can provide you Inconel 625 Socket Weld Fittings as per your requirement on immediate bases Because we have our stockyard in India, Dubai, United States, United Arab Emirates, Indonesia, Israel, Thailand, Vietnam, Kuwait, United Kingdom, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Saudi Arabia, Brazil, Colombia, Iran, Italy, Denmark etc. we keep Inconel 625 Socket Weld Fittings in our stock for 365 days to serve our clients on immediate bases. we also provide our Inconel 625 Socket Weld Fittings in small quantity, cut & sizes.

We are maintaing the stock of around 3000 ton of Nickel Pipe Fittings, Inconel 625 Socket Weld FittingsInconel 625 Flanges in , Dammam, Saudi Arabia to provide quick delivery in Gulf Countries(GCC) for ongoing projects, so we an deliver Inconel 625 Fittings & Inconel 625 Flanges with in a day as per requirements of our valued clients in Saudi Arabia & all Gulf countries at best price, bcz. there is no shipping cost for each material again n again, due to our ready stock of Inconel 625 Socket Weld Fittings, Inconel 625 Fittings & Inconel 625 Flanges in Saudi Arabia, our clients can visit our stockyard in Dammam, Saudi Arabia & can inspect the material before placing the order & within no time delivery can be scheduled, by having largest stockyard in Middle East of Inconel 625 Socket Weld Fittings & Inconel 625 Flanges makes us different from all other manufactures & stockiest of Inconel 625 Fittings & Flanges in INDIA & Saudi Arabia, so we can provide Inconel 625 Fittings & Inconel 625 Flanges at less than 10% cost & fastest delivery, we also can provide used Inconel 625 Fittings & used Inconel 625 Flanges in UAE, SAUDI ARABIA, SINGAPORE, IRAN, KUWAIT, CANADA, GERMANY, UK, USA, NETHERLAND, AUSTRILIA, ITALY, BELGIUM, BRAZIL, EGYPT, NIGERIA, TANZANIA, THAILAND, COLOMBIA, TURKEY, INDONESIA at almost half of the price, even our pre used Inconel 625 Socket Weld Fittings & Inconel 625 Flanges also tested & check before buyback, so these Inconel 625 Socket Weld Fittings & Inconel 625 Flanges can be used even in Turnkey projects & in Different sectors like Oil & Gas, Petroleum, Chemical, Fertiliser, Construction, Dairy, Pharma etc.

we are engaged in manufacturing Seamless & welded long radius elbow 90 deg, long radius elbow 45 deg, long radius & short radius elbow 180 deg (return bend), reduceing elbow, equal tee, crosses, concentric reducer, ecentric reducer, long stubend, short stubend, coller, pipe cap, long radius bends R = 3D, 5D, 6D, 8D, 10D & 20D in 15 deg, 30 deg, 60 deg & 90 deg & drawing base buttweld fittings, socket weld fittings, screwed fittings, forged fittings, threaded fittings, ferrule Fittings, Pipe Fittings, Inconel 625 Return Bend, Inconel 625 Hex Nipple, Inconel 625 Brass Fittings, Inconel 625 Lateral Fittings, Inconel 625 Steel Bush, Inconel 625 Socket Weld Fittings, Inconel 625 Orifice Fitting, Inconel 625 Forged fittings, Inconel 625 Socket Weld Fittings, Inconel 625 Threaded Fittings, Inconel 625 Reducing Elbow, Inconel 625 Nipples, Inconel 625 Y Fittings, Inconel 625 Square Head Plugs, Inconel 625 Street Elbow, Inconel 625 Inserts, Inconel 625 RTJ Flange, Inconel 625 swivel flange, Inconel 625 WNRTJ Flange, Inconel 625 Orifice flange, Inconel 625 Ring Joint Flange, Inconel 625 Lap joint flange, Inconel 625 Expander flange, Inconel 625 Long weld neck flange, Inconel 625 Nipo Flange, Inconel 625 Spectacle Blind Flange, Inconel 625 paddle blind, Inconel 625 Threaded Flange, Inconel 625 Slip On Flanges, Inconel 625 spectacle flange, Inconel 625 Long weld neck flange, Inconel 625 Nut Bolt, Inconel 625 Rivets, Inconel 625 Nails, Inconel 625 Nuts, Inconel 625 U-Bolts, Inconel 625 Hex Bolts, Inconel 625 Studs, Inconel 625 Screws, Inconel 625 Hex Screws, Inconel 625 Bolts, Inconel 625 Washers, Inconel 625 Square Bolts.

Inconel 625 Socket Weld Fittings in India | Inconel 625 Socket Weld Fittings Prices in India | Inconel 625 Socket Weld Fittings Stockist in India | Inconel 625 Socket Weld Fittings Supplier in India | Inconel 625 Socket Weld Fittings Exporter in India | Inconel 625 Socket Weld Fittings Manufacturer in India | Inconel 625 Socket Weld Fittings Distributor in India | Inconel 625 Socket Weld Fittings Trader in India | Inconel 625 Socket Weld Fittings Dealer in India | Inconel 625 Socket Weld Fittings Stockholder in India | Inconel 625 Socket Weld Fittings Importer in India. | Inconel 625 Socket Weld Fittings distributor in Mumbai | Inconel 625 Socket Weld Fittings with Test Certificate | Inconel 625 Socket Weld Fittings Manufacturer in Mumbai
