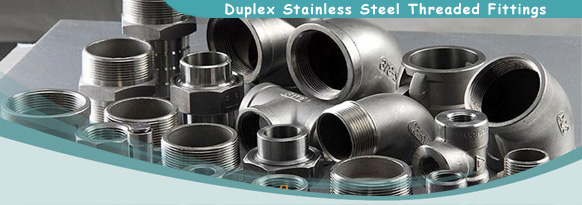

Duplex Stainless Steel Threaded Pipe Fittings


Duplex Stainless Steel Threaded Pipe Fittings Manufacturers

Manufacturer, Supplier & Stockists Of Duplex Stainless Steel Threaded Pipe Fittings, Tee, Elbow , reducers, Cross, Stubent, Pipe Cap, Stub Ends, Couplings, Nipples, pipe bends, Union, Stainless Steel Pipe Fittings, Carbon Steel Pipe Fiitings & Other Pipe Fittings in India.

We Offer High Quality Duplex Stainless Steel Threaded Pipe Fittings, & other Pipe Fittings in Stainless steel, Carbon steel, Alloy Steel, High Nickel Alloy & Copper Nickel.

Duplex Stainless Steel Threaded Pipe Fittings , Forged Fittings, Buttweld Fittings & Other Pipe Fittings Manufacturer, supplier & stockist in India

TYPES OF THREADED / SCREWED/ SOCKET WELD FITTINGS BY CLASS, SIZE AND WALL THICKNESS

Description Class Designation
3000 6000 9000
Elbows 45 and 90 degrees,
Tees, Crosses, Couplings, lateral, Bushings, Locknut, Plug, Plug, Square Head,
Half-Couplings,Uniouns, reducer inserts, Return Bend, 180º
End or Pipe Caps		 ½ – 4 ½ – 2 ½ – 2
½ – 4 ½ – 2 ½ – 2
½ – 4 ½ – 2 ½ – 2
Pipe Size
by Wall Thickness		 SCH 80 & XS SCH 160 XXS

Summary Of Duplex Stainless Steel Threaded Pipe Fittings

enquiry-button

What is Duplex Stainless Steel Threaded Pipe Fittings

Duplex stainless steels have a mixed microstructure of austenite and ferrite, the aim usually being to produce a 50/50 mix, although in commercial alloys the ratio may be 40/60. Duplex stainless steels have roughly twice the strength compared to austenitic stainless steels and also improved resistance to localized corrosion, particularly pitting, crevice corrosion and stress corrosion cracking. They are characterized by high chromium (19–32%) and molybdenum (up to 5%) and lower nickel contents than austenitic stainless steels.

The properties of duplex stainless steels are achieved with an overall lower alloy content than similar-performing super-austenitic grades, making their use cost-effective for many applications. Duplex grades are characterized into groups based on their alloy content and corrosion resistance.

  • Standard duplex is 22% chromium with UNS S31803/S32205 known as 2205 being the most widely used.
  • Super duplex is by definition a duplex stainless steel with a Pitting Resistance Equivalent Number (PREN) > 40, where PREN = %Cr + 3.3x(%Mo + 0.5x%W) + 16x%N. Usually super duplex grades have 25% chromium or more and some common examples are S32760 (Zeron 100 via Rolled Alloys), S32750 (2507) and S32550 (Ferralium),.
  • Hyper duplex refers to duplex grades with a PRE > 48 and at the moment only UNS S32707 and S33207 are available on the market.

There are many different grades in this category which have their unique characteristics and properties in different conditions and environments.

Stainless Steel Grades: WP 304 Stainless Steel Pipe Fittings, WP 304L Stainless Steel Pipe Fittings, WP 310 Stainless Steel Pipe Fittings, WP 310S Stainless Steel Pipe Fittings, WP 316 Stainless Steel Pipe Fittings, WP 316L Stainless Steel Pipe Fittings, WP 317 Stainless Steel Pipe Fittings, WP 317L Stainless Steel Pipe Fittings, WP 321 Stainless Steel Pipe Fittings, WP 321H Stainless Steel Pipe Fittings, WP 347 Stainless Steel Pipe Fittings, WP 347H Stainless Steel Pipe Fittings, WP 904L Stainless Steel Pipe Fittings, WP 254 SMO Stainless Steel Pipe Fittings

Threaded Pipe Fittings joints probably represent the oldest method of joining piping systems. Like Socket Weld fittings, threaded fittings are mainly used for small pipe diameters (Small Bore Piping); generally for piping whose nominal diameter is NPS 2 or smaller.
The dimensional standards for taper pipe threads are given in ASME B1.20.1. That document gives all required dimensions including number of threads per inch, pitch diameter, and normal engagement lengths for all pipe diameters.

  • Threaded piping is commonly used in low-cost, noncritical applications such as domestic water, fire protection, and industrial cooling water systems.
  • Threaded fittings are normally made of cast gray or malleable iron, cast brass or bronze, or forged alloy and carbon steel.
  • They are available in three pressure ratings: Class 2000, 3000 and 6000.

MD Expots LLP is Manufacturer, Stockists & Supplier of premium quality range of Duplex Stainless Steel Threaded Pipe Fittings & other pipe fittings Flanges that are manufactured under the expert guidance of our diligent workforce.we are highly experienced company in Duplex Stainless Steel Threaded Pipe Fittings & other pipe fittings Flanges. our Duplex Stainless Steel Threaded Pipe Fittings & other Fitting products are manufactured using quality material and go through a rigorous quality check at all stages of production to ensure quality. Designed in compliance with international quality standards, these Duplex Stainless Steel Threaded Pipe Fittings are corrosion resistance, sturdy and durable.we also supply Duplex Stainless Steel Threaded Pipe Fittings & other pipe fittings Flanges in customized size.

Duplex Stainless Steel Threaded Pipe Fittings Standard

Standards Designation Specification
ASTM A 403 ANSI B16.9
ASME SA 403

enquiry-button

Duplex Stainless Steel Threaded Pipe Fittings current Price

enquiry-button

Duplex Stainless Steel Threaded Pipe Fittings ready stock

Duplex Stainless Steel Threaded Pipe Fittings manufacturerMD Expots LLP stocks Duplex Stainless Steel Threaded Pipe Fittings & other pipe fitting flanges at locations throughout India. We maintain a large inventory of Duplex Stainless Steel butt welding pipe fittings, Duplex Stainless Steel forged pipe fittings and Duplex Stainless Steel flanges. we also have huge stock of Duplex Stainless Steel Reducer, Duplex Stainless Steel Concentric Reducers, Duplex Stainless Steel Eccentric Reducers, Duplex Stainless Steel Elbow, Duplex Stainless Steel Elbows – Long Radius, Duplex Stainless Steel Elbows – Short Radius, Duplex Stainless Steel 3D Elbow, Duplex Stainless Steel 5D Elbow, Duplex Stainless Steel 90° Elbows, Duplex Stainless Steel 45° Elbows, Duplex Stainless Steel Tee, Duplex Stainless Steel Cross, Duplex Stainless Steel Stub Ends and Duplex Stainless Steel Pipe Bends, Duplex Stainless Steel 180° LR Return Bends, Duplex Stainless Steel 180° SR Return Bends, Duplex Stainless Steel Couplings, Duplex Stainless Steel Unions, Duplex Stainless Steel Pipe Nipples. Our stock of Duplex Stainless Steel flange products include threaded flange, weld neck flange, slip on flange, socket weld flange, blind flange, lap joint flange, plate flange.

We also have our sales representatives to understand the requirements of our clients, we maintain ready stock of Duplex Stainless Steel Threaded Pipe Fittings, Duplex Stainless Steel Threaded Pipe Fittings & Duplex Stainless Steel flanges, in Cities like Abu Dhabi, Riyadh, Manama, Muscat, Doha, Dubai, Damascus, Khartoum, Beirut, Jeddah, Aleppo, Alexandria, Algiers, Amman, Mosul, Cairo, Baghdad, Dammam, Casablanca, Basra, Mecca, Tripoli, Rabat, Sana’a, Arbil, Hilla, Port Said, Marrakech, Medina, Al Hudaydah, Omdurman, Damietta, Homs, Kafr Dawar, Benghazi, Fez, Bahri, Nouakchott, Sulaymaniyah, Safi, Zarqa, Oran, Kirkuk, Ismailia, Tunis, Agadir, Tangier, Sharjah, Shibin El Kom, Misratah, Matrah, Aden, Najaf, Karbala, Latakia, Sousse, Meknes, Gaza, Fallujah, Aswan, Kassala, Al-Ubayyid, Sohag, Kuala Lumpur, Penang, Kuching & many more…

Ready inventory Of Duplex Stainless Steel Threaded Pipe Fittings & other Pipe Fittings At trident Steel engg.:-

enquiry-button

Special offer on Duplex Stainless Steel Threaded Pipe Fittings

MD Expots LLP Manufacture a wide range of  Duplex Steel Threaded Pipe Fittings, Stainless Steel pipe fittings (ASME B16.9, DIN, EN), Duplex Stainless Steel Flanges (ASTM A182, ASTM A240, ASME, DIN, EN), Duplex Stainless Steel Forged Fittings (ASTM A182, ASME, DIN, EN), Duplex Stainless Steel Reducer, Duplex Stainless Steel Elbow, Duplex Stainless Steel Long/Short Radius Elbows, Duplex Stainless Steel Compression Fittings, Duplex Stainless Steel Single Ferrule Fittings, Duplex Stainless Steel Double Ferrule Fittings, Duplex Stainless Steel Fittings Exporter in India, Duplex Stainless Steel Tee’s, Duplex Stainless Steel Stub Ends, Duplex Stainless Steel Double Flanged Fittings, Duplex Stainless Steel Fabricated Fittings, Threaded Duplex Stainless Steel Fittings, NPT Fittings, SS 304/304L Fittings, SS 316/316L Fittings, SS 316Ti Fittings, Duplex Stainless Steel U Bends, Duplex Stainless Steel Reducers, Duplex Stainless Steel 5D/3D Elbow, Duplex Stainless Steel Tube Fittings,These industrial fittings are available in different dimensions and specifications to meet the requirements of our valued customers worldwide,MD Expots LLP is leading Manufacturer of  Duplex Steel Threaded Pipe Fittings, Stainless Steel pipe fittings & Duplex Stainless Steel flanges in INDIA since Five Decades,MD Expots LLP ranks in Top Ten company in INDIA engaged in manufacturing of  Duplex Steel Threaded Pipe Fittings, Stainless Steel pipe fittings & Duplex Stainless Steel flanges,MD Expots LLP is ISO-9001:2008, 1400;2004, 18001:2007 certified organisation.

We at MD Expots LLP Offer you 5 % Discount on Duplex Stainless Steel Threaded Pipe Fittings and also on other products like Stainless Steel 304, Stainless Steel 316, Stainless Steel 317L, Stainless Steel 347, Stainless Steel 310, Inconel 600, Inconel 625, Incoloy 825, Monel 400, Monel K-500 , Monel R-405, Hastelloy C276, Hastelloy C22, Duplex Steel 2205, Super Duplex Steel 2507, Alloy steel, Carbon Steel etc.

Duplex Stainless Steel Threaded Pipe Fittings Application

Application Industry:

Duplex Stainless Steel Threaded Pipe Fittings manufacturer

  • Duplex Stainless Steel Threaded Pipe Fittings uses in Oil and Gas Pipeline
  • Duplex Stainless Steel Threaded Pipe Fittings uses in Chemical Industry
  • Duplex Stainless Steel Threaded Pipe Fittings uses in Plumbing
  • Duplex Stainless Steel Threaded Pipe Fittings uses in Heating
  • Duplex Stainless Steel Threaded Pipe Fittings uses in Oil & Gas Industry
  • Duplex Stainless Steel Threaded Pipe Fittings uses in Water Supply Systems
  • Duplex Stainless Steel Threaded Pipe Fittings uses in Paper & Pulp Industry
  • Duplex Stainless Steel Threaded Pipe Fittings uses in Power Plant
  • Duplex Stainless Steel Threaded Pipe Fittings uses in Fabrication Industry
  • Duplex Stainless Steel Threaded Pipe Fittings uses in General purpose applications
  • Duplex Stainless Steel Threaded Pipe Fittings uses in Food Processing Industry
  • Duplex Stainless Steel Threaded Pipe Fittings uses in Structural Pipe
  • Duplex Stainless Steel Threaded Pipe Fittings uses in Heat Exchangers
  • Duplex Stainless Steel Threaded Pipe Fittings is Also used for other Industrial purpose etc.

enquiry-button

Duplex Stainless Steel Threaded Pipe Fittings availability worldwide

Duplex Stainless Steel Threaded Pipe Fittings manufacturer

We are Experts in exporting Duplex Stainless Steel Threaded Pipe Fittings to over 45 countries including UAE, UK, Dubai, Iran, Iraq, Qatar, Bahrain, Oman, Yemen, Lebanon, Jordan, Saudi Arabia, Malaysia, Indonesia, Singapore, Australia, New Zealand, USA, Canada, Mexico, Brazil, Netherlands, Germany, Italy, Spain, Serbia, Kuwait, Peru, Nigeria, Poland, South Africa, Denmark, Turkey, Egypt, Venezuela, Kuwait, Madagascar, Angloa & Srilanka & are major pipe Fittings & Flanges Suppliers in Saudi Arabia etc.

Our ready stock of Duplex Stainless Steel Threaded Pipe Fittings is also available in top countries such as Dubai, United States, United Arab Emirates, Indonesia, Israel, Thailand, Vietnam, Kuwait, United Kingdom, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Saudi Arabia, Brazil, Colombia, Iran, Italy, Denmark etc. who can help you to buy Duplex Stainless Steel Threaded Pipe Fittings Pipe fittings and joints and can provide you all the information as per your requirements.

Countries & Cities We Serve

Duplex Stainless Steel Threaded Pipe Fittings Statistics

Duplex Stainless Steel Threaded Pipe Fittings Statistic

Useful information of Duplex Stainless Steel Threaded Pipe Fittings

MD Expots LLP focus on fitting manufacturing & Suppling, main products are Buttweld fitting, Socket fitting, Threaded Fitting, Flange according to GB 12459, ASME B16.9, B16.11, B16.5, MSS SP-75, SP-44, AWWA, DIN, JIS, etc, size range from DN 15 to DN 2000, Thikness up to 100mm, material cover stainless steel, alloy steel and carbon steel, like: WPB, P5, P9, P11, P22, P91, 304/304L, 316/316L, 317/317L, 321/321H, 347/347H, 904L, WP 254 SMO and so on.

MD Expots LLP is a leading manufacturer, exporter and supplier of buttweld seamless and welded duplex fittings, duplex flanges and duplex pipes. MD Expots LLP offers a complete range of Duplex Stainless Steel Threaded Pipe Fittings such as duplex reducer, duplex elbow, duplex tee, duplex cross, duplex stub ends and duplex pipe bends. We are one of the few manufacturers in India who can weld, bend and form Duplex Stainless Steel Threaded Pipe Fittings in various sizes and dimensions.

Duplex stainless steel pipes and duplex fittings are generally lower in cost, as lower percentage of alloying element is used in the manufacture of duplex stainless steel. The yield strength of duplex stainless steel products is higher compared to austenitic stainless steel products, as a result of which users can purchase relatively lower thickness duplex pipes and duplex fittings.

MD Expots LLP also stocks and supplies a complete range of duplex seamless pipes to complement our existing production range of duplex buttweld fittings and flanges. Duplex pipes can be supplied in cut to length sizes and also machined or fabricated to meet your piping requirements.

Duplex and super-duplex stainless steels

Duplex grade UNS S31803 (EN 1.4462 / SAF 2205) and super-duplex grade UNS S32750 (EN 1.4410 / SAF 2507) acc. to ASTM A815, G48A for UNS S32750 and PMI tested.
All trident Steel ASME butt welding fittings are acc. to ASME B16.9, annealed and quenched, bevelled ends acc. to ASME B16.25, hardness acc. to NACE MR0175.

Definition and Details of Threaded Fittings ASME B16.11

Threaded joints probably represent the oldest method of joining piping systems. Like Socket Weld fittings, threaded fittings are mainly used for small pipe diameters (Small Bore Piping); generally for piping whose nominal diameter is NPS 2 or smaller.
The dimensional standards for taper pipe threads are given in ASME B1.20.1. That document gives all required dimensions including number of threads per inch, pitch diameter, and normal engagement lengths for all pipe diameters.

  • Threaded piping is commonly used in low-cost, noncritical applications such as domestic water, fire protection, and industrial cooling water systems.
  • Threaded fittings are normally made of cast gray or malleable iron, cast brass or bronze, or forged alloy and carbon steel.
  • They are available in three pressure ratings: Class 2000, 3000 and 6000.

Advantages of Threaded Fittings

  • Installation productivity is moderately high, and specialized installation skill requirements are not extensive.
  • Leakage integrity is good for low-pressure, low-temperature installations where vibration is not encountered.

High Pressure Threaded Pipe Fittings

Pressure Class 2000LBS, 3000LBS, 6000LBS
Products Elbow 90 Degree, Elbow 45 Degree, Tee, Cross, Union, Street Elbow, Coupling, Half Coupling, Reducing Coupling, Cap, Hex Head Bushing, Hex Head Plug, Square Head Plug, Round Head Plug, Bull Plug, Boss, Outlet, Hex Nipple, Swage Nipple
Dimension Specifications ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size 1/8″~4″ (DN6~DN100)

Forged Pipe Fittings Manufacturing Standards

ASTM A182 – ASME SA182 – Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
ASME B16.9 – Factory-Made Wrought Buttwelding Fittings
ASME B16.11 – Forged Fittings, Socket – Welding and Threaded
MSS SP-43 – Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
MSS SP-95 – Swage(d) Nipples and Bull Plugs
BS3799 – Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry

Forged Threaded Stainless Steel Fittings

Stainless Steel – ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L

  • The material for forged stainless steel fittings conforms to ASME A182
  • The dimensions for forged stainless steel fittings conform to ASME B16.11
  • NPT Threads conform to ASME B1.20.1

Forged Threaded Carbon Steel Fittings

Carbon Steel ASTM A105, A350 LF2, A106 Gr.B, A234 WPB

  • The material for forged carbon steel fittings conforms to the requirements of ASTM/ASME A105/SA105 The dimensions for forged carbon steel fittings conform to ASME B16.11
  • NPT Threads conform to ASME B1.20.1

Buttweld Duplex Stainless Steel Pipe Fittings

Seamless/Welded 100% Radiography Tested

Products Size
Duplex Stainless Steel Elbows – Long Radius Duplex Stainless Steel Stub Ends

Sizes 1/2″ – 48″
Duplex Stainless Steel Elbows – Short Radius Duplex Stainless Steel Crosses
Duplex Stainless Steel Reducing Elbows Duplex Stainless Steel Reducing Crosses
Duplex Stainless Steel 45° Elbows Duplex Stainless Steel 180° LR Return Bends
Duplex Stainless Steel Tees Duplex Stainless Steel 180° SR Return Bends
Duplex Stainless Steel Tees Duplex Stainless Steel Pipe Bends / Piggable Bends
Duplex Stainless Steel Reducers Duplex Stainless Steel Couplings
Duplex Stainless Steel Concentric Reducers Duplex Stainless Steel Pipe Nipples
Duplex Stainless Steel Eccentric Reducers Duplex Stainless Steel Forged/Plate Cut Rings
Duplex Stainless Steel 3D Elbow Duplex Stainless Steel End Caps
Duplex Stainless Steel 5D Elbow Duplex Stainless Steel Forged / Plate Circles

High Pressure Forged Duplex Stainless Steel Threaded Fittings

Threaded and Socket Weld Pipe Fittings

Products Size
Duplex Stainless Steel 90° Elbows Duplex Stainless Steel Couplings

Sizes 1/8″ – 4″

Pressure Ratings –
2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Duplex Stainless Steel 45° Elbows Duplex Stainless Steel Reducers
Duplex Stainless Steel Street Elbows Duplex Stainless Steel Inserts
Duplex Stainless Steel Tees Duplex Stainless Steel Caps
Duplex Stainless Steel Crosses Duplex Stainless Steel Unions

Duplex Stainless Steel Threaded Pipe Fittings Specifications :

We offer various types of forged threaded fittings including threaded elbow, threaded tee, threaded cross, threaded bends, threaded coupling, threaded caps, threaded union, hexagon bushing, square plugs, and hexagon plugs. We also manufacture and supply fittings specially manufactured to meet your custom requirements in a variety of stainless steel and special alloy grades.

Material :
  1. Stainless Steel ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L
    ASTM A312/A403 TP304, TP304L, TP316, TP316L
  2. Carbon Steel ASTM A105, A350 LF2, A106 Gr.B, A234 WPB
Dimension : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Pressure : 2000LBS, 3000LBS, 6000LBS
Size : 1/8"~4" (DN6~DN100)

Dimensions of Threaded Pipe Fittings

DN-NPT Major Diameter
mm		 Tapping
Drill Size mm		 TPI Pitch
mm
1/16" 7.895 6.00 27 0.941
1/8" 10.242 8.25 27 0.941
1/4" 13.616 10.70 18 1.411
3/8" 17.055 14.10 18 1.411
1/2" 21.223 17.40 14 1.814
3/4" 26.568 22.60 14 1.814
1" 33.228 28.50 11.5 2.209
1.1/4" 41.985 37.00 11.5 2.209
1.1/2" 48.054 43.50 11.5 2.209
2" 60.092 55.00 11.5 2.209
2.1/2" 72.699 65.50 8 3.175
3" 88.608 81.50 8 3.175
3.1/2" 101.316 94.30 8 3.175
4" 113.973 107.00 8 3.175
5" 141.300 134.384 8 3.175
6" 168.275 161.191 8 3.175
8" 219.075 211.673 8 3.175
10" 273.050 265.311 8 3.175
12" 323.850 315.793 8 3.175

Duplex Stainless Steel Threaded Pipe Fittings Physical Properties

Property 2205 UR52N+
Density (g.cm3) 7.805 7.810
Modulus of Elasticity (GPa) 200 205
Electrical Resistivity (Ω.m) 0.085×10-6 0.085×10-6
Thermal Conductivity (W/m.K) 19 at 100°C 17 at 100°C
Thermal Expansion (m/m.K) 13.7×10-6 to 100°C 13.5×10-6 to 200°C

Duplex Stainless Steel Threaded Pipe Fittings Chemical Composition

Grade  EN No/UNS Type Approx Composition
Cr Ni Mo N Mn W Cu
2101 LDX 1.4162/ S32101  Lean 21.5  1.5 0.3 0.22 5 - -
DX2202 1.4062/ S32202 Lean 23 2.5 0.3 0.2 1.5 - -
RDN 903 1.4482/ S32001 Lean 20 1.8 0.2  0.11 4.2 - -
2304 1.4362/ S32304  Lean 23 4.8  0.3  0.10 - - -
2205 1.4462/ S31803/ S32205 Standard  22 5.7 3.1 0.17 - - -
2507 1.4410/ S32750 Super 25 7 4 0.27 - - -
Zeron 100 1.4501/ S32760 Super 25  7 3.2 0.25 - 0.7 0.7
Ferrinox 255/ Uranus 2507Cu 1.4507/ S32520/ S32550 Super 25 6.5 3.5 0.25 - - 1.5

Duplex Stainless Steel Threaded Pipe Fittings Mechanical Properties

Grade

 2205

 UR52N+
Tensile Strength (MPa)

 620

 770
Proof Stress 0.2% (MPa)

 450

 550
Elongation A5 (%)

 25

 25

We Also Engaded in Offering Following Product Range:

Duplex Stainless Steel Threaded Pipe Fittings Duplex Stainless Steel Steel Bush Duplex Stainless Steel Nipples
Duplex Stainless Steel Return Bend Duplex Stainless Steel Orifice Fitting Duplex Stainless Steel Square Head Plugs
Duplex Stainless Steel Hex Nipple Duplex Stainless Steel Brass Fittings Duplex Stainless Steel Inserts
Duplex Stainless Steel Lateral Fittings Duplex Stainless Steel Forged fittings Duplex Stainless Steel Threaded Fittings
Duplex Stainless Steel Reducing Elbow Duplex Stainless Steel Threaded Pipe Fittings Duplex Stainless Steel Street Elbow
Duplex Stainless Steel Y Fittings Duplex Stainless Steel Socket Weld Flanges Duplex Stainless Steel Weld Neck Flanges

Duplex Stainless Steel RTJ Flange Duplex Stainless Steel swivel flange Duplex Stainless Steel spectacle flange
Duplex Stainless Steel WNRTJ Flange Duplex Stainless Steel Orifice flange Duplex Stainless Steel Threaded Flanges
Duplex Stainless Steel Ring Joint Flange Duplex Stainless Steel Lap joint flange Duplex Stainless Steel Slip On Flange
Duplex Stainless Steel Long weld neck flange Duplex Stainless Steel Expander flange Duplex Stainless Steel Threaded Flange
Duplex Stainless Steel paddle blind Duplex Stainless Steel Nipo Flange Duplex Stainless Steel Spectacle Blind Flange

Duplex Stainless Steel Nut Bolt Duplex Stainless Steel Rivets Duplex Stainless Steel Nails
Duplex Stainless Steel Nuts Duplex Stainless Steel U-Bolts Duplex Stainless Steel Hex Bolts
Duplex Stainless Steel Studs Duplex Stainless Steel Screws Duplex Stainless Steel Hex Screws
Duplex Stainless Steel Bolts Duplex Stainless Steel Washers Duplex Stainless Steel Square Bolts

enquiry-button

Leading manufacturers of Duplex Stainless Steel Threaded Pipe Fittings

We also having stock of Duplex Stainless Steel Threaded Pipe Fittings & other Duplex Stainless Steel Threaded Pipe Fittings & Duplex Stainless Steel Flanges manufactured by Erne Fittings (Austri), Metal,far (Italy), Lame S.R.l. (Italy), BKL- Thai Benkan (Thailand), BENKAN Corporation (Japan), TecnoForge (Italy), Ulma (Spain), Mega (Italy), Melesi (Italy), Interfit (France), Raccortubi S.P.A. (Italy). we are the distributor of the Of these Brands. we also have the sales representative who can provide the proper information of these Brands & about Grades, material and sizes.

We mainly stock following make :

Erne Fittings, Austria Metal far, Italy Lame S.R.l., Italy
BENKAN Corporation, Japan BKL- Thai Benkan, Thailand TecnoForge, Italy
Ulma, Spain Mega, Italy Melesi, Italy
Interfit, France Raccortubi S.P.A., Italy

Duplex Stainless Steel Threaded Pipe Fittings Stockyard

Duplex Stainless Steel Threaded Pipe Fittings stockyard Duplex Stainless Steel Threaded Pipe Fittings stockyard Duplex Stainless Steel Threaded Pipe Fittings stockyard

We have Duplex Stainless Steel Threaded Pipe Fittings available in our stock we can provide you Duplex Stainless Steel Threaded Pipe Fittings as per your requirement on immediate bases Because we have our stockyard in India, Dubai, United States, United Arab Emirates, Indonesia, Israel, Thailand, Vietnam, Kuwait, United Kingdom, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Saudi Arabia, Brazil, Colombia, Iran, Italy, Denmark etc. we keep Duplex Stainless Steel Threaded Pipe Fittings in our stock for 365 days to serve our clients on immediate bases. we also provide our Duplex Stainless Steel Threaded Pipe Fittings in small quantity, cut & sizes.

We are maintaing the stock of around 3000 ton of  Duplex Steel Threaded Pipe Fittings, Stainless Steel pipe fittings & Duplex Stainless Steel flanges in , Dammam, Saudi Arabia to provide quick delivery in Gulf Countries(GCC) for ongoing projects, so we an deliver Duplex Stainless Steel Fittings & Duplex Stainless Steel Flanges with in a day as per requirements of our valued clients in Saudi Arabia & all Gulf countries at best price, bcz. there is no shipping cost for each material again n again, due to our ready stock of Duplex Stainless Steel Threaded Pipe Fittings, Duplex Stainless Steel Fittings & Duplex Stainless Steel Flanges in Saudi Arabia, our clients can visit our stockyard in Dammam, Saudi Arabia & can inspect the material before placing the order & within no time delivery can be scheduled, by having largest stockyard in Middle East of  Duplex Steel Threaded Pipe Fittings, Stainless Steel pipe fittings & Duplex Stainless Steel flanges makes us different from all other manufactures & stockiest of Duplex Stainless Steel Fittings & Flanges in INDIA & Saudi Arabia, so we can provide Duplex Stainless Steel Fittings & Duplex Stainless Steel Flanges at less than 10% cost & fastest delivery, we also can provide used Duplex Stainless Steel Fittings & used Duplex Stainless Steel Flanges in UAE, SAUDI ARABIA, SINGAPORE, IRAN, KUWAIT, CANADA, GERMANY, UK, USA, NETHERLAND, AUSTRILIA, ITALY, BELGIUM, BRAZIL, EGYPT, NIGERIA, TANZANIA, THAILAND, COLOMBIA, TURKEY, INDONESIA at almost half of the price, even our pre used  Duplex Steel Threaded Pipe Fittings, Stainless Steel pipe fittings & Duplex Stainless Steel flanges also tested & check before buyback, so these  Duplex Steel Threaded Pipe Fittings, Stainless Steel pipe fittings & Duplex Stainless Steel flanges can be used even in Turnkey projects & in Different sectors like Oil & Gas, Petroleum, Chemical, Fertiliser, Construction, Dairy, Pharma etc.

we are engaged in manufacturing Seamless & welded long radius elbow 90 deg, long radius elbow 45 deg, long radius & short radius elbow 180 deg (return bend), reduceing elbow, equal tee, crosses, concentric reducer, ecentric reducer, long stubend, short stubend, coller, pipe cap, long radius bends R = 3D, 5D, 6D, 8D, 10D & 20D in 15 deg, 30 deg, 60 deg & 90 deg & drawing base buttweld fittings, socket weld fittings, screwed fittings, forged fittings, threaded fittings, ferrule Fittings, Pipe Fittings, Duplex Stainless Steel Return Bend, Duplex Stainless Steel Hex Nipple, Duplex Stainless Steel Brass Fittings, Duplex Stainless Steel Lateral Fittings, Duplex Stainless Steel Steel Bush, Duplex Stainless Steel Threaded Pipe Fittings, Duplex Stainless Steel Orifice Fitting, Duplex Stainless Steel Forged fittings, Duplex Stainless Steel Threaded Pipe Fittings, Duplex Stainless Steel Threaded Fittings, Duplex Stainless Steel Reducing Elbow, Duplex Stainless Steel Nipples, Duplex Stainless Steel Y Fittings, Duplex Stainless Steel Square Head Plugs, Duplex Stainless Steel Street Elbow, Duplex Stainless Steel Inserts, Duplex Stainless Steel RTJ Flange, Duplex Stainless Steel swivel flange, Duplex Stainless Steel WNRTJ Flange, Duplex Stainless Steel Orifice flange, Duplex Stainless Steel Ring Joint Flange, Duplex Stainless Steel Lap joint flange, Duplex Stainless Steel Expander flange, Duplex Stainless Steel Long weld neck flange, Duplex Stainless Steel Nipo Flange, Duplex Stainless Steel Spectacle Blind Flange, Duplex Stainless Steel paddle blind, Duplex Stainless Steel Threaded Flange, Duplex Stainless Steel Slip On Flanges, Duplex Stainless Steel spectacle flange, Duplex Stainless Steel Long weld neck flange, Duplex Stainless Steel Nut Bolt, Duplex Stainless Steel Rivets, Duplex Stainless Steel Nails, Duplex Stainless Steel Nuts, Duplex Stainless Steel U-Bolts, Duplex Stainless Steel Hex Bolts, Duplex Stainless Steel Studs, Duplex Stainless Steel Screws, Duplex Stainless Steel Hex Screws, Duplex Stainless Steel Bolts, Duplex Stainless Steel Washers, Duplex Stainless Steel Square Bolts.

Duplex Stainless Steel Threaded Pipe Fittings in India | Duplex Stainless Steel Threaded Pipe Fittings Prices in India | Duplex Stainless Steel Threaded Pipe Fittings Stockist in India | Duplex Stainless Steel Threaded Pipe Fittings Supplier in India | Duplex Stainless Steel Threaded Pipe Fittings Exporter in India | Duplex Stainless Steel Threaded Pipe Fittings Manufacturer in India | Duplex Stainless Steel Threaded Pipe Fittings Distributor in India | Duplex Stainless Steel Threaded Pipe Fittings Trader in India | Duplex Stainless Steel Threaded Pipe Fittings Dealer in India | Duplex Stainless Steel Threaded Pipe Fittings Stockholder in India | Duplex Stainless Steel Threaded Pipe Fittings Importer in India. | Duplex Stainless Steel Threaded Pipe Fittings distributor in Mumbai | Duplex Stainless Steel Threaded Pipe Fittings with Test Certificate | Duplex Stainless Steel Threaded Pipe Fittings Manufacturer in Mumbai

enquiry-button
