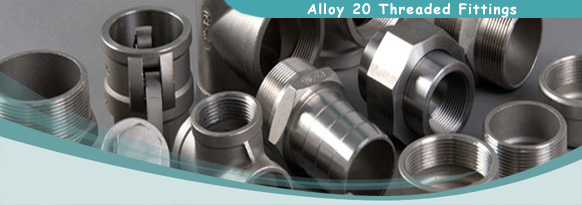

Alloy 20 Threaded Pipe Fittings


Alloy 20 Threaded Pipe Fittings Manufacturers

Manufacturer, Supplier & Stockists Of Alloy 20 Threaded Pipe Fittings, Tee, Elbow , reducers, Cross, Stubent, Pipe Cap, Stub Ends, Couplings, Nipples, pipe bends, Union & Other Pipe Fittings

We Offer High Quality Alloy 20 Threaded Pipe Fittings, & other Pipe Fittings in Stainless steel, Carbon steel, Alloy Steel, High Nickel Alloy & Copper Nickel.

Alloy 20 Threaded Pipe Fittings , Forged Fittings, Buttweld Fittings & Other Pipe Fittings Manufacturer, supplier & stockist in India

Standard designations for High Nickel alloys

Standard (ASME/ANSI B16.11, MSS-SP-97, MSS-SP-79, JIS B2316, BS 3799etc)
Process Free forging, plate cutting .forged
Size 1/8"-4" (DN6-DN100)
Connect Type Welded, threaded, BW, SW
Shape Equal
Material ALLOY 20 PIPE FITTINGS, UNS N08020 FLANGES MANUFACTURER IN INDIA, ALLOY 20 SEAMLESS PIPES, ALLOY 20 PIPE FITTINGS, STAINLESS STEEL ALLOY 20 FLANGES, ALLOY 20 PIPE BEND, ALLOY 20 ELBOW, ALLOY 20 TEE, ALLOY 20 REDUCER, ALLOY 20 STUB END

TYPES OF THREADED / SCREWED/ FITTINGS BY CLASS, SIZE AND WALL THICKNESS

Description Class Designation
3000 6000 9000
Elbows 45 and 90 degrees,
Tees, Crosses, Couplings, lateral, Bushings, Locknut, Plug, Plug, Square Head,
Half-Couplings,Uniouns, reducer inserts, Return Bend, 180º
End or Pipe Caps
½ – 4 ½ – 2 ½ – 2
½ – 4 ½ – 2 ½ – 2
½ – 4 ½ – 2 ½ – 2
Pipe Size
by Wall Thickness
SCH 80 & XS SCH 160 XXS

Stainless Steel Tradename UNS no. Werkstoff No. Density (g/cm3)
Alloy 20 Incoloy Alloy 20, Carpenter 20 N08020 2.4660 8.083

Summary Of Alloy 20 Threaded Pipe Fittings

enquiry-button

What is Alloy 20 Threaded Pipe Fittings

Alloy 20 is alloy formulated of nickel, molybdenum, chromium and copper which equips it with distinguished resistance to acid attacks, general corrosion, crevice corrosion and pitting. The chemistry in the alloy defies the oxidizing environment that involves chlorides and sulfuric acid, nitric acid, and phosphoric acid. The alloy consists of niobium for equilibrium against sensitization delivering intergranular corrosion. The alloy has impressive mechanical properties at both nominal and extreme temperatures.

There are many different stainless steel grades in this category which have their unique characteristics and properties in different conditions and environments.

Stainless Steel Grades: WP 304 Stainless Steel Pipe FittingsWP 304L Stainless Steel Pipe FittingsWP 310 Stainless Steel Pipe FittingsWP 310S Stainless Steel Pipe FittingsWP 316 Stainless Steel Pipe FittingsWP 316L Stainless Steel Pipe FittingsWP 317 Stainless Steel Pipe FittingsWP 317L Stainless Steel Pipe FittingsWP 321 Stainless Steel Pipe FittingsWP 321H Stainless Steel Pipe FittingsWP 347 Stainless Steel Pipe FittingsWP 347H Stainless Steel Pipe FittingsWP 904L Stainless Steel Pipe FittingsWP 254 SMO Stainless Steel Pipe Fittings

Threaded Pipe Fittings joints probably represent the oldest method of joining piping systems. Like Socket Weld fittings, threaded fittings are mainly used for small pipe diameters (Small Bore Piping); generally for piping whose nominal diameter is NPS 2 or smaller.
The dimensional standards for taper pipe threads are given in ASME B1.20.1. That document gives all required dimensions including number of threads per inch, pitch diameter, and normal engagement lengths for all pipe diameters.

  • Threaded piping is commonly used in low-cost, noncritical applications such as domestic water, fire protection, and industrial cooling water systems.
  • Threaded fittings are normally made of cast gray or malleable iron, cast brass or bronze, or forged alloy and carbon steel.
  • They are available in three pressure ratings: Class 2000, 3000 and 6000.

MD Expots LLP is Manufacturer, Stockists & Supplier of premium quality range of Alloy 20 Threaded Pipe Fittings & other pipe fittings Flanges that are manufactured under the expert guidance of our diligent workforce.we are highly experienced company in Alloy 20 Threaded Pipe Fittings & other pipe fittings Flanges. our Alloy 20 Threaded Pipe Fittings & other Fitting products are manufactured using quality material and go through a rigorous quality check at all stages of production to ensure quality. Designed in compliance with international quality standards, these Alloy 20 Threaded Pipe Fittings are corrosion resistance, sturdy and durable.we also supply Alloy 20 Threaded Pipe Fittings & other pipe fittings Flanges in customized size.

Alloy 20 Threaded Pipe Fittings Standard | ALLOY 20 | N08020 | 2.4660 | NICR20CUMO | Z2NCUD31-20AZ

STANDARDS DESIGNATION
ASTM B 564

enquiry-button

Alloy 20 Threaded Pipe Fittings current Price

enquiry-button

Alloy 20 Threaded Pipe Fittings ready stock

Alloy 20 Threaded Pipe Fittings manufacturerMD Expots LLP stocks Alloy 20 Threaded Pipe Fittings & other pipe fitting flanges at locations throughout India. We maintain a large inventory of Alloy 20 butt welding pipe fittings, Alloy 20 forged pipe fittings and Alloy 20 flanges. we also have huge stock of Alloy 20 Reducer, Alloy 20 Concentric Reducers, Alloy 20 Eccentric Reducers, Alloy 20 Elbow, Alloy 20 Elbows – Long Radius, Alloy 20 Elbows – Short Radius, Alloy 20 3D Elbow, Alloy 20 5D Elbow, Alloy 20 90° Elbows, Alloy 20 45° Elbows, Alloy 20 Tee, Alloy 20 Cross, Alloy 20 Stub Ends and Alloy 20 Pipe Bends, Alloy 20 180° LR Return Bends, Alloy 20 180° SR Return Bends, Alloy 20 Couplings, Alloy 20 Unions, Alloy 20 Pipe Nipples. Our stock of Alloy 20 flange products include threaded flange, weld neck flange, slip on flange, socket weld flange, blind flange, lap joint flange, plate flange.

We also have our sales representatives to understand the requirements of our clients, we maintain ready stock of Alloy 20 Threaded Pipe Fittings, Alloy 20 Threaded Pipe Fittings & Alloy 20 flanges, in Cities like Abu Dhabi, Riyadh, Manama, Muscat, Doha, Dubai, Damascus, Khartoum, Beirut, Jeddah, Aleppo, Alexandria, Algiers, Amman, Mosul, Cairo, Baghdad, Dammam, Casablanca, Basra, Mecca, Tripoli, Rabat, Sana’a, Arbil, Hilla, Port Said, Marrakech, Medina, Al Hudaydah, Omdurman, Damietta, Homs, Kafr Dawar, Benghazi, Fez, Bahri, Nouakchott, Sulaymaniyah, Safi, Zarqa, Oran, Kirkuk, Ismailia, Tunis, Agadir, Tangier, Sharjah, Shibin El Kom, Misratah, Matrah, Aden, Najaf, Karbala, Latakia, Sousse, Meknes, Gaza, Fallujah, Aswan, Kassala, Al-Ubayyid, Sohag, Kuala Lumpur, Penang, Kuching & many more…

Ready inventory Of Alloy 20 Threaded Pipe Fittings & other Pipe Fittings At trident Steel engg.:-

enquiry-button

Special offer on Alloy 20 Threaded Pipe Fittings

MD Expots LLP Manufacture a wide range of Alloy 20 Threaded Pipe Fittings (ASME B16.9, DIN, EN), Alloy 20 Flanges(ASTM A182, ASTM A240, ASME, DIN, EN), Alloy 20 Threaded Pipe Fittings (ASTM A182, ASME, DIN, EN), Alloy 20 Reducer, Alloy 20 Elbow, Alloy 20 Long/Short Radius Elbows, Alloy 20 Compression Fittings, Alloy 20 Single Ferrule Fittings, Alloy 20 Double Ferrule Fittings, Alloy 20 Fittings Exporter in India, Alloy 20 Tee’s, Alloy 20 Stub Ends, Alloy 20 Double Flanged Fittings, Alloy 20 Fabricated Fittings, Threaded Alloy 20 Fittings, NPT Fittings, SS 304/304L Fittings, SS 316/316L Fittings, SS 316Ti Fittings, Alloy 20 U Bends, Alloy 20 Reducers, Alloy 20 5D/3D Elbow, Alloy 20 Threaded Pipe Fittings & Alloy 20 Tube Fittings. These industrial fittings are available in different dimensions and specifications to meet the requirements of our valued customers worldwide,MD Expots LLP is leading Manufacturer of Alloy 20 Threaded Pipe Fittings & Alloy 20 Flanges  in INDIA since Five Decades,MD Expots LLP ranks in Top Ten company in INDIA engaged in manufacturing of Alloy 20 Threaded Pipe Fittings & Alloy 20 Flanges, MD Expots LLP is ISO-9001:2008, 1400;2004, 18001:2007 certified organisation.

We at MD Expots LLP Offer you 5 % Discount on Alloy 20 Threaded Pipe Fittings and also on other products like Stainless Steel 304, Stainless Steel 316, Stainless Steel 317L, Stainless Steel 347, Stainless Steel 310, Inconel 600, Inconel 625, Hastelloy 825, Monel 400, Monel K-500 , Monel R-405, Hastelloy C276, Hastelloy C22, Duplex Steel 2205, Super Duplex Steel 2507, Alloy steel, Carbon Steel etc.

Alloy 20 Threaded Pipe Fittings Application

Application Industry:

Alloy 20 Threaded Pipe Fittings manufacturer

  • Alloy 20 Threaded Pipe Fittings uses in Oil and Gas Pipeline
  • Alloy 20 Threaded Pipe Fittings uses in Chemical Industry
  • Alloy 20 Threaded Pipe Fittings uses in Plumbing
  • Alloy 20 Threaded Pipe Fittings uses in Heating
  • Alloy 20 Threaded Pipe Fittings uses in Oil & Gas Industry
  • Alloy 20 Threaded Pipe Fittings uses in Water Supply Systems
  • Alloy 20 Threaded Pipe Fittings uses in Paper & Pulp Industry
  • Alloy 20 Threaded Pipe Fittings uses in Power Plant
  • Alloy 20 Threaded Pipe Fittings uses in Fabrication Industry
  • Alloy 20 Threaded Pipe Fittings uses in General purpose applications
  • Alloy 20 Threaded Pipe Fittings uses in Food Processing Industry
  • Alloy 20 Threaded Pipe Fittings uses in Structural Pipe
  • Alloy 20 Threaded Pipe Fittings uses in Heat Exchangers
  • Alloy 20 Threaded Pipe Fittings is Also used for other Industrial purpose etc.

enquiry-button

Alloy 20 Threaded Pipe Fittings availability worldwide

Alloy 20 Threaded Pipe Fittings manufacturer

We are Experts in exporting Alloy 20 Threaded Pipe Fittings to over 45 countries including UAE, UK, Dubai, Iran, Iraq, Qatar, Bahrain, Oman, Yemen, Lebanon, Jordan, Saudi Arabia, Malaysia, Indonesia, Singapore, Australia, New Zealand, USA, Canada, Mexico, Brazil, Netherlands, Germany, Italy, Spain, Serbia, Kuwait, Peru, Nigeria, Poland, South Africa, Denmark, Turkey, Egypt, Venezuela, Kuwait, Madagascar, Angloa & Srilanka & are major pipe Fittings & Flanges Suppliers in Saudi Arabia etc.

Our ready stock of Alloy 20 Threaded Pipe Fittings is also available in top countries such as Dubai, United States, United Arab Emirates, Indonesia, Israel, Thailand, Vietnam, Kuwait, United Kingdom, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Saudi Arabia, Brazil, Colombia, Iran, Italy, Denmark etc. who can help you to buy Alloy 20 Threaded Pipe Fittings Pipe fittings and joints and can provide you all the information as per your requirements.

Countries & Cities We Serve

Alloy 20 Threaded Pipe Fittings Statistics

Alloy 20 Threaded Pipe Fittings Statistic

Useful information of Alloy 20 Threaded Pipe Fittings

MD Expots LLP focus on fitting manufacturing & Suppling, main products are Buttweld fitting, Socket fitting, Threaded Fitting, Flange according to GB 12459, ASME B16.9, B16.11, B16.5, MSS SP-75, SP-44, AWWA, DIN, JIS, etc, size range from DN 15 to DN 2000, Thikness up to 100mm, material cover stainless steel, alloy steel and carbon steel, like: WPB, P5, P9, P11, P22, P91, 304/304L, 316/316L, 317/317L, 321/321H, 347/347H, 904L, WP 254 SMO and so on.

What are the Characteristics of Alloy 20?

Key Properties of Alloy 20 Pipe Fittings and Flanges

  • Excellent resistance to corrosion, crevice corrosion, and pitting
  • Perfect for use around sulfuric, phosphoric, and nitric acids
  • Ease of fabrication and elevated mechanical properties

Definition and Details of Threaded Fittings ASME B16.11

Threaded joints probably represent the oldest method of joining piping systems. Like Socket Weld fittings, threaded fittings are mainly used for small pipe diameters (Small Bore Piping); generally for piping whose nominal diameter is NPS 2 or smaller.
The dimensional standards for taper pipe threads are given in ASME B1.20.1. That document gives all required dimensions including number of threads per inch, pitch diameter, and normal engagement lengths for all pipe diameters.

  • Threaded piping is commonly used in low-cost, noncritical applications such as domestic water, fire protection, and industrial cooling water systems.
  • Threaded fittings are normally made of cast gray or malleable iron, cast brass or bronze, or forged alloy and carbon steel.
  • They are available in three pressure ratings: Class 2000, 3000 and 6000.

Advantages of Threaded Fittings

  • Installation productivity is moderately high, and specialized installation skill requirements are not extensive.
  • Leakage integrity is good for low-pressure, low-temperature installations where vibration is not encountered.

High Pressure Threaded Pipe Fittings

Pressure Class 2000LBS, 3000LBS, 6000LBS
Products Elbow 90 Degree, Elbow 45 Degree, Tee, Cross, Union, Street Elbow, Coupling, Half Coupling, Reducing Coupling, Cap, Hex Head Bushing, Hex Head Plug, Square Head Plug, Round Head Plug, Bull Plug, Boss, Outlet, Hex Nipple, Swage Nipple
Dimension Specifications ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size 1/8″~4″ (DN6~DN100)

Forged Pipe Fittings Manufacturing Standards

ASTM A182 – ASME SA182 – Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
ASME B16.9 – Factory-Made Wrought Buttwelding Fittings
ASME B16.11 – Forged Fittings, Socket – Welding and Threaded
MSS SP-43 – Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
MSS SP-95 – Swage(d) Nipples and Bull Plugs
BS3799 – Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry

Forged Threaded Stainless Steel Fittings

Stainless Steel – ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L

  • The material for forged stainless steel fittings conforms to ASME A182
  • The dimensions for forged stainless steel fittings conform to ASME B16.11
  • NPT Threads conform to ASME B1.20.1

Forged Threaded Carbon Steel Fittings

Carbon Steel ASTM A105, A350 LF2, A106 Gr.B, A234 WPB

  • The material for forged carbon steel fittings conforms to the requirements of ASTM/ASME A105/SA105 The dimensions for forged carbon steel fittings conform to ASME B16.11
  • NPT Threads conform to ASME B1.20.1

Buttweld Alloy 20 Pipe Fittings

Seamless/Welded 100% Radiography Tested

Products Size
Alloy 20 Elbows – Long Radius Alloy 20 Stub Ends

Sizes 1/2″ – 48″

Alloy 20 Elbows – Short Radius Alloy 20 Crosses
Alloy 20 Reducing Elbows Alloy 20 Reducing Crosses
Alloy 20 45° Elbows Alloy 20 180° LR Return Bends
Alloy 20 Tees Alloy 20 180° SR Return Bends
Alloy 20 Tees Alloy 20 Pipe Bends / Piggable Bends
Alloy 20 Reducers Alloy 20 Couplings
Alloy 20 Concentric Reducers Alloy 20 Pipe Nipples
Alloy 20 Eccentric Reducers Alloy 20 Forged/Plate Cut Rings
Alloy 20 3D Elbow Alloy 20 End Caps
Alloy 20 5D Elbow Alloy 20 Forged / Plate Circles

High Pressure Forged Alloy Pipe Fittings

Threaded and Socket Weld Pipe Fittings

Products Size
Alloy 20 90° Elbows Alloy 20 Couplings

Sizes 1/8″ – 4″

Pressure Ratings –
2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS

Alloy 20 45° Elbows Alloy 20 Reducers
Alloy 20 Street Elbows Alloy 20 Inserts
Alloy 20 Tees Alloy 20 Caps
Alloy 20 Crosses Alloy 20 Unions

Alloy 20 Threaded Pipe Fittings Specifications :

Alloy 20 Pipe Fittings Production Range

Specification ASTM B366, ASTM SB 366, ASTM B564, ASME SB564
Grade Alloy 20, UNS N08020, 2.4660, Incoloy Alloy 20, Carpenter 20
Type Seamless / Welded / Fabricated / Forged / Threaded (Screwed) / Socketweld
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Range ½”NB to 24”NB in Sch 10s, 40s, 80s, 160s, XXS.
Dimensions ANSI/ASME B16.9, B16.28, MSS-SP-43.

STANDARD ALLOY 20
UNS N08020
WERKSTOFF NR. 2.4660
EN NiCr20CuMo
AFNOR Z2NCUD31-20AZ

MATERIALS :
Nickel Alloy Pipe Fittings
Standard: ASTM / ASME SB 564 / 160 / 472.

UNS

W.Nr

Materials

UNS N10276

DIN 2.4819

Hastelloy C276 Pipe Fittings

UNS N02200

DIN 2.4066

Nickel 200 Pipe Fittings

UNS N02201

DIN 2.4068

Nickel 201 Pipe Fittings

UNS N04400

DIN 2.4360

Monel 400 Pipe Fittings

UNS N05500

DIN 2.4375

Monel K-500 Pipe Fittings

UNS N06600

DIN 2.4816

Inconel 600 Pipe Fittings

UNS N06601

DIN 2.4851

Inconel 601 Pipe Fittings

UNS N06625

DIN 2.4856

Inconel 625 Pipe Fittings

UNS N08800

DIN 1.4876

Incoloy 800 Pipe Fittings

UNS N08810

DIN 1.4876

Incoloy 800H Pipe Fittings

UNS N08825

DIN 2.4858

Incoloy 825 Pipe Fittings

UNS N06022

DIN 2.4602

Hastelloy C22 Pipe Fittings

UNS N10665

DIN 2.4617

Hastelloy B2 Pipe Fittings

UNS N06455

DIN 2.4610

Hastelloy C- 4 Outlet

UNS N08020



Alloy 20 Pipe Fittings

Alloy 20 Threaded Pipe Fittings Physical Properties

Density Specific Gravity Specific Heat
at 32 to 212°F
Electrical Resistivity
at 68°F
Poissons Ratio Magnetic Permeability
at 68°F
Modulus of Elasticity
at 68°F
0.292 lbs/in3 8.08 0.12 BTU/lb/°F 644 ohm-cir mil/ft 0.31 1.002 Mu 29.3 x 106 psi

Alloy 20 Threaded Pipe Fittings Chemical Composition

TYPE C Cr Cu Fe Mn Mo Ni P Si S Nb
(Cb)
Alloy 20
UNS
N08020
0.07
max
min: 19.00
max: 21.00
min: 3.00
max: 4.00
Balance 2.00
max
min: 2.00
max: 3.00
min: 32.00
max: 38.00
0.045
max
1.00
max
0.035
max
8 XC min
1.00 max

We Also Engaded in Offering Following Product Range:

Alloy 20 Threaded Pipe Fittings Alloy 20 Steel Bush Alloy 20 Nipples
Alloy 20 Return Bend Alloy 20 Orifice Fitting Alloy 20 Square Head Plugs
Alloy 20 Hex Nipple Alloy 20 Brass Fittings Alloy 20 Inserts
Alloy 20 Lateral Fittings Alloy 20 Forged fittings Alloy 20 Threaded Fittings
Alloy 20 Reducing Elbow Alloy 20 Threaded Pipe Fittings Alloy 20 Street Elbow
Alloy 20 Y Fittings Alloy 20 Socket Weld Flanges Alloy 20 Weld Neck Flanges

Alloy 20 RTJ Flange Alloy 20 swivel flange Alloy 20 spectacle flange
Alloy 20 WNRTJ Flange Alloy 20 Orifice flange Alloy 20 Threaded Flanges
Alloy 20 Ring Joint Flange Alloy 20 Lap joint flange Alloy 20 Slip On Flange
Alloy 20 Long weld neck flange Alloy 20 Expander flange Alloy 20 Threaded Flange
Alloy 20 paddle blind Alloy 20 Nipo Flange Alloy 20 Spectacle Blind Flange

Alloy 20 Nut Bolt Alloy 20 Rivets Alloy 20 Nails
Alloy 20 Nuts Alloy 20 U-Bolts Alloy 20 Hex Bolts
Alloy 20 Studs Alloy 20 Screws Alloy 20 Hex Screws
Alloy 20 Bolts Alloy 20 Washers Alloy 20 Square Bolts

enquiry-button

Leading manufacturers of Alloy 20 Threaded Pipe Fittings

We also having stock of Alloy 20 Threaded Pipe Fittings & other Alloy 20 Threaded Pipe Fittings & Alloy 20 Flanges manufactured by Erne Fittings (Austri), Metal,far (Italy), Lame S.R.l. (Italy), BKL- Thai Benkan (Thailand), BENKAN Corporation (Japan), TecnoForge (Italy), Ulma (Spain), Mega (Italy), Melesi (Italy), Interfit (France), Raccortubi S.P.A. (Italy). we are the distributor of the Of these Brands. we also have the sales representative who can provide the proper information of these Brands & about Grades, material and sizes.

We mainly stock following make :

Erne Fittings, Austria Metal far, Italy Lame S.R.l., Italy
BENKAN Corporation, Japan BKL- Thai Benkan, Thailand TecnoForge, Italy
Ulma, Spain Mega, Italy Melesi, Italy
Interfit, France Raccortubi S.P.A., Italy

Alloy 20 Threaded Pipe Fittings Stockyard

Alloy 20 Threaded Pipe Fittings stockyard Alloy 20 Threaded Pipe Fittings stockyard Alloy 20 Threaded Pipe Fittings stockyard

We have Alloy 20 Threaded Pipe Fittings available in our stock we can provide you Alloy 20 Threaded Pipe Fittings as per your requirement on immediate bases Because we have our stockyard in India, Dubai, United States, United Arab Emirates, Indonesia, Israel, Thailand, Vietnam, Kuwait, United Kingdom, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Saudi Arabia, Brazil, Colombia, Iran, Italy, Denmark etc. we keep Alloy 20 Threaded Pipe Fittings in our stock for 365 days to serve our clients on immediate bases. we also provide our Alloy 20 Threaded Pipe Fittings in small quantity, cut & sizes.

We are maintaing the stock of around 3000 ton of Nickel Pipe Fittings, Alloy 20 Threaded Pipe Fittings & Alloy 20 Flanges in , Dammam, Saudi Arabia to provide quick delivery in Gulf Countries(GCC) for ongoing projects, so we an deliver Alloy 20 Fittings & Alloy 20 Flanges with in a day as per requirements of our valued clients in Saudi Arabia & all Gulf countries at best price, bcz. there is no shipping cost for each material again n again, due to our ready stock of Alloy 20 Threaded Pipe Fittings, Alloy 20 Fittings & Alloy 20 Flanges in Saudi Arabia, our clients can visit our stockyard in Dammam, Saudi Arabia & can inspect the material before placing the order & within no time delivery can be scheduled, by having largest stockyard in Middle East of Alloy 20 Threaded Pipe Fittings & Alloy 20 Flanges makes us different from all other manufactures & stockiest of Alloy 20 Fittings & Flanges in INDIA & Saudi Arabia, so we can provide Alloy 20 Fittings & Alloy 20 Flanges at less than 10% cost & fastest delivery, we also can provide used Alloy 20 Fittings & used Alloy 20 Flanges in UAE, SAUDI ARABIA, SINGAPORE, IRAN, KUWAIT, CANADA, GERMANY, UK, USA, NETHERLAND, AUSTRILIA, ITALY, BELGIUM, BRAZIL, EGYPT, NIGERIA, TANZANIA, THAILAND, COLOMBIA, TURKEY, INDONESIA at almost half of the price, even our pre used Alloy 20 Threaded Pipe Fittings & Alloy 20 Flanges also tested & check before buyback, so these Alloy 20 Threaded Pipe Fittings & Alloy 20 Flanges can be used even in Turnkey projects & in Different sectors like Oil & Gas, Petroleum, Chemical, Fertiliser, Construction, Dairy, Pharma etc.

we are engaged in manufacturing Seamless & welded long radius elbow 90 deg, long radius elbow 45 deg, long radius & short radius elbow 180 deg (return bend), reduceing elbow, equal tee, crosses, concentric reducer, ecentric reducer, long stubend, short stubend, coller, pipe cap, long radius bends R = 3D, 5D, 6D, 8D, 10D & 20D in 15 deg, 30 deg, 60 deg & 90 deg & drawing base buttweld fittings, socket weld fittings, screwed fittings, forged fittings, threaded fittings, ferrule Fittings, Pipe Fittings, Alloy 20 Return Bend, Alloy 20 Hex Nipple, Alloy 20 Brass Fittings, Alloy 20 Lateral Fittings, Alloy 20 Steel Bush, Alloy 20 Threaded Pipe Fittings, Alloy 20 Orifice Fitting, Alloy 20 Forged fittings, Alloy 20 Threaded Pipe Fittings, Alloy 20 Threaded Fittings, Alloy 20 Reducing Elbow, Alloy 20 Nipples, Alloy 20 Y Fittings, Alloy 20 Square Head Plugs, Alloy 20 Street Elbow, Alloy 20 Inserts, Alloy 20 RTJ Flange, Alloy 20 swivel flange, Alloy 20 WNRTJ Flange, Alloy 20 Orifice flange, Alloy 20 Ring Joint Flange, Alloy 20 Lap joint flange, Alloy 20 Expander flange, Alloy 20 Long weld neck flange, Alloy 20 Nipo Flange, Alloy 20 Spectacle Blind Flange, Alloy 20 paddle blind, Alloy 20 Threaded Flange, Alloy 20 Slip On Flanges, Alloy 20 spectacle flange, Alloy 20 Long weld neck flange, Alloy 20 Nut Bolt, Alloy 20 Rivets, Alloy 20 Nails, Alloy 20 Nuts, Alloy 20 U-Bolts, Alloy 20 Hex Bolts, Alloy 20 Studs, Alloy 20 Screws, Alloy 20 Hex Screws, Alloy 20 Bolts, Alloy 20 Washers, Alloy 20 Square Bolts.

Alloy 20 Threaded Pipe Fittings in India | Alloy 20 Threaded Pipe Fittings Prices in India | Alloy 20 Threaded Pipe Fittings Stockist in India | Alloy 20 Threaded Pipe Fittings Supplier in India | Alloy 20 Threaded Pipe Fittings Exporter in India | Alloy 20 Threaded Pipe Fittings Manufacturer in India | Alloy 20 Threaded Pipe Fittings Distributor in India | Alloy 20 Threaded Pipe Fittings Trader in India | Alloy 20 Threaded Pipe Fittings Dealer in India | Alloy 20 Threaded Pipe Fittings Stockholder in India | Alloy 20 Threaded Pipe Fittings Importer in India. | Alloy 20 Threaded Pipe Fittings distributor in Mumbai | Alloy 20 Threaded Pipe Fittings with Test Certificate | Alloy 20 Threaded Pipe Fittings Manufacturer in Mumbai
