The function of a 45° elbow is the same as a 90° elbow, but the measurement of dimensions is different to that of the 90° elbow.
We at MD Expots LLP believes in long term relationship with our clients worldwide, Required Quality in reasonable price of ANSI/ASME B16.9 45° Short Radius Elbow are always our main priority. We are known as specialist in ANSI/ASME B16.9 45° Short Radius Elbow,70% of our customers are associated with us for their regular requirements of ANSI/ASME B16.9 45° Short Radius Elbow, Chinese suppliers also procures ANSI/ASME B16.9 45° Short Radius Elbow from us bcz. We have the specialization & 35 years of experience to manufacture ANSI/ASME B16.9 45° Short Radius Elbow.
MD Expots LLP is Manufacturer, Stockists & Supplier of premium quality range of ANSI/ASME B16.9 45° Short Radius Elbow, Stainless Steel Flanges & Other Stainless Steel Pipe fittings that are manufactured under the expert guidance of our diligent workforce. we are highly experienced company in ANSI/ASME B16.9 45° Short Radius Elbow & other pipe fittings. our ANSI/ASME B16.9 45° Short Radius Elbow & Other Fitting products are manufactured using quality material and go through a rigorous quality check at all stages of production to ensure quality. Designed in compliance with international quality standards, these ANSI/ASME B16.9 45° Short Radius Elbow are corrosion resistance, sturdy and durable. we also supply ANSI/ASME B16.9 45° Short Radius Elbow & other pipe fittings Flanges in customized size. Our Product Supply Division offers a broad portfolio of Steel Flanges and ANSI/ASME B16.9 45° Short Radius Elbow. When you place an order with MD Expots LLP, you will receive the products that will stand up in service from people that will stand behind their product.

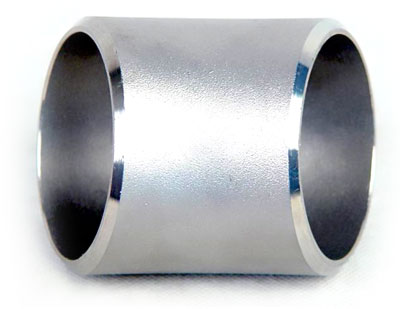

ANSI/ASME B16.9 45° Short Radius Elbow
| Standards: | ANSI – B 16.9 ASTM A403 – ASME SA403 – ‘Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings’ API 590-605 ASME B16.9 – ‘Factory-Made Wrought Buttwelding Fittings” ASME B16.25 – ‘Buttwelding Ends’ ASME B16.28 – ‘Wrought Steel Buttwelding Short Radius Elbows and Returns’ MSS SP-43 – ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications’ |
| Schedule: | Sch 5 TO Sch XXS. |
| Sizes: | Diameters – from 21,3 to 711 mm. Wall Thickness – from 2 to 40 mm. |
| Materials: | Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30 Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
| Type: | Butt Weld (BW) |
| Thickness: | Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc. |
| Dimension: | ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313 |
Dimensions
|
Nom.
Pipe
Size
|
Pipe
Sched.
or No.
|
Center-
to-end
Dimen.
|
Outside
Dia.
|
Inside
Dia.
|
Wall
Thick.
|
Approx.
Weight
(lb.)
|
| F | OD | ID | T | |||
| STANDARD WEIGHT | ||||||
| 1/2 | 40 | 5/8 | 0.840 | 0.622 | 0.109 | 0.1 |
| 3/4 | 40 | 7/16 | 1.050 | 0.824 | 0.113 | 0.1 |
| 1 | 40 | 7/8 | 1.315 | 1.049 | 0.133 | 0.2 |
| 1 1/4 | 40 | 1 | 1.660 | 1.380 | 0.140 | 0.4 |
| 1 1/2 | 40 | 1 1/8 | 1.900 | 1.610 | 0.145 | 0.5 |
| 2 | 40 | 1 3/8 | 2.375 | 2.067 | 0.154 | 0.9 |
| 2 1/2 | 40 | 1 3/4 | 2.875 | 2.469 | 0.203 | 1.5 |
| 3 | 40 | 2 | 3.500 | 3.068 | 0.216 | 2.5 |
| 3 1/2 | 40 | 2 1/4 | 4.000 | 3.548 | 0.226 | 3.5 |
| 4 | 40 | 2 1/2 | 4.500 | 4.026 | 0.237 | 4.8 |
| 5 | 40 | 3 1/8 | 5.563 | 5.047 | 0.258 | 7.8 |
| 6 | 40 | 3 3/4 | 6.625 | 6.065 | 0.280 | 12 |
| 8 | 40 | 5 | 8.625 | 7.981 | 0.322 | 23 |
| 10 | 40 | 6 1/4 | 10.750 | 10.020 | 0.365 | 42 |
| 12 | - | 7 1/2 | 12.750 | 12.000 | 0.375 | 61 |
| 14 | 30 | 8 3/4 | 14.000 | 13.250 | 0.375 | 79 |
| 16 | 30 | 10 | 16.000 | 15.250 | 0.375 | 103 |
| 18 | - | 11 1/4 | 18.000 | 17.250 | 0.375 | 132 |
| 20 | 20 | 12 1/2 | 20.000 | 19.250 | 0.375 | 160 |
| 22 | 20 | 13 1/2 | 22.000 | 21.250 | 0.375 | 195 |
| 24 | 20 | 15 | 24.000 | 23.250 | 0.375 | 238 |
| EXTRA STRONG | ||||||
|
Nom.
Pipe
Size
|
Pipe
Sched.
or No.
|
Center-
to-end
Dimen.
|
Outside
Dia.
|
Inside
Dia.
|
Wall
Thick.
|
Approx.
Weight
(lb.)
|
| F | OD | ID | T | |||
| 1/2 | 80 | 5/8 | 0.840 | 0.546 | 0.147 | 0.2 |
| 3/4 | 80 | 7/16 | 1.050 | 0.742 | 0.154 | 0.3 |
| 1 | 80 | 7/8 | 1.315 | 0.957 | 0.179 | 0.4 |
| 1 1/4 | 80 | 1 | 1.660 | 1.278 | 0.191 | 0.5 |
| 1 1/2 | 80 | 1 1/8 | 1.900 | 1.500 | 0.200 | 0.6 |
| 2 | 80 | 1 3/8 | 2.375 | 1.939 | 0.218 | 1.1 |
| 2 1/2 | 80 | 1 3/4 | 2.875 | 2.323 | 0.276 | 2.1 |
| 3 | 80 | 2 | 3.500 | 2.900 | 0.300 | 3.5 |
| 3 1/2 | 80 | 2 1/4 | 4.000 | 3.364 | 0.318 | 4.8 |
| 4 | 80 | 2 1/2 | 4.500 | 3.826 | 0.337 | 6.5 |
| 5 | 80 | 3 1/8 | 5.563 | 4.813 | 0.375 | 11 |
| 6 | 80 | 3 3/4 | 6.625 | 5.761 | 0.432 | 18 |
| 8 | 80 | 5 | 8.625 | 7.625 | 0.500 | 35 |
| 10 | 60 | 6 1/4 | 10.750 | 9.750 | 0.500 | 56 |
| 12 | - | 7 1/2 | 12.750 | 11.750 | 0.500 | 80 |
| 14 | - | 8 3/4 | 14.000 | 13.000 | 0.500 | 100 |
| 16 | 40 | 10 | 16.000 | 15.000 | 0.500 | 131 |
| 18 | - | 11 1/4 | 18.000 | 17.000 | 0.500 | 172 |
| 20 | 30 | 12 1/2 | 20.000 | 19.000 | 0.500 | 210 |
| 22 | 30 | 13 1/2 | 22.000 | 21.000 | 0.500 | 259 |
| 24 | - | 15 | 24.000 | 23.000 | 0.500 | 302 |
ELBOWS – Ansi 16.9 tolerances
| DIMENSIONAL TOLERANCES – ELBOWS | |||||||
| For all fittings | Elbows 90/45 deg | 180° Returns | |||||
| Nominal Pipe Size (NPS) | Outside Ø at Bevel |
Inside Ø at End |
Wall Thickness t / t1 |
Center to End Dim. A-B-C-M | Center to Center Dim. O |
Back to Face Dim. K |
Align- ment of Ends U |
| 1/2 a 2 1/2 | 1 | 0,8 | Not | 2 | 7 | 7 | 1 |
| 3 a 3 1/2 | 1 | 1,6 | less | 2 | 7 | 7 | 1 |
| 4 | +2 -1 | 1,6 | than | 2 | 7 | 7 | 1 |
| 5 a 6 | +3 -1 | 1,6 | 87,50% | 2 | 7 | 7 | 1 |
| 8 | 2 | 1,6 | of nominal | 2 | 7 | 7 | 1 |
| 10 | +4 -3 | 3,2 | tickness | 2 | 7 | 7 | 2 |
| 12 a 18 | +4 -3 | 3,2 | 3 | 10 | 7 | 2 | |
| 20 a 24 | +6 -5 | 4,8 | 3 | 10 | 7 | 2 | |
| 26 a 30 | +7 -5 | 4,8 | 3 | ….. | ….. | ….. | |
| 32 a 48 | +7 -5 | 4,8 | 5 | ….. | ….. | ….. | |
| Angularity Tolerances | ||
| ND | Max off angle | Max off plane |
| Q | P | |
| 1/2 a 4 | 1 | 2 |
| 5 a 8 | 2 | 4 |
| 10 a 12 | 3 | 5 |
| 14 a 16 | 3 | 7 |
| 18 a 24 | 4 | 10 |
| 26 a 30 | 5 | 10 |
| 32 a 42 | 5 | 13 |
| 44 a 48 | 5 | 20 |
ELBOWS – Weights
| WEIGHTS OF FITTINGS | ||||||||
| NPS inches |
ELBOWS LR 90° |
ELBOWS SR 90° |
||||||
| Sch. 5S |
Sch. 10S |
Sch. 40S |
Sch. 80S |
Sch. 5S |
Sch. 10S |
Sch. 40S |
Sch. 80S |
|
| 1/2 | 0.05 | 0.06 | 0.08 | 0.10 | 0.03 | 0.04 | 0.05 | 0.07 |
| 3/4 | 0.06 | 0.07 | 0.09 | 0.11 | 0.04 | 0.05 | 0.06 | 0.07 |
| 1 | 0.09 | 0.15 | 0.18 | 0.20 | 0.06 | 0.10 | 0.12 | 0.13 |
| 1 1/4 | 0.13 | 0.20 | 0.25 | 0.35 | 0.09 | 0.13 | 0.17 | 0.12 |
| 1 1/2 | 0.18 | 0.30 | 0.40 | 0.50 | 0.12 | 0.20 | 0.27 | 0.33 |
| 2 | 0.30 | 0.50 | 0.70 | 0.90 | 0.20 | 0.33 | 0.47 | 0.60 |
| 2 1/2 | 0.60 | 0.85 | 1.35 | 1.80 | 0.40 | 0.60 | 0.90 | 1.20 |
| 3 | 0.90 | 1.30 | 2.00 | 2.90 | 0.60 | 0.90 | 1.35 | 1.90 |
| 4 | 1.40 | 2.00 | 4.00 | 5.90 | 0.90 | 1.35 | 2.65 | 3.90 |
| 5 | 2.90 | 3.60 | 6.50 | 9.70 | 1.95 | 2.40 | 4.35 | 6.50 |
| 6 | 4.00 | 5.00 | 10.5 | 16.0 | 2.70 | 3.35 | 7.00 | 10.5 |
| 8 | 7.40 | 10.0 | 21.5 | 33.5 | 4.90 | 6.70 | 14.5 | 22.5 |
| 10 | 13.6 | 16.8 | 38.5 | 52.5 | 9.10 | 11.2 | 25.6 | 35.0 |
| 12 | 23.4 | 27.0 | 59.0 | 79.0 | 15.6 | 18.0 | 39.5 | 53.0 |
| 14 | 29.0 | 35.0 | 70.0 | 94.0 | 19.3 | 23.5 | 47.0 | 63.0 |
| 16 | 41.3 | 47.0 | 95.0 | 125 | 27.5 | 31.5 | 63.5 | 84.0 |
| 18 | 51.8 | 59.0 | 120 | 158 | 34.5 | 39.5 | 80.0 | 105 |
| 20 | 73.0 | 85.0 | 146 | 194 | 49.0 | 57.0 | 98.0 | 129 |
| 24 | 122 | 140 | 210 | 282 | 82.0 | 94.0 | 140 | 188 |
| Approximate weights in kg, density 8 kg/dm3 | ||||||||
ELBOWS – End welding bevels
ANSI/ASME B16.9 45° Short Radius Elbow Godown
we are the manufacturer of ANSI/ASME B16.9 45° Short Radius Elbow, we have our own A 3 level 10,000 feet and well equipped warehouse located at Kalamboli, Navi Mumbai, India. We thanks to our skilled staff, we can produce a large number of ANSI/ASME B16.9 45° Short Radius Elbow that comply with the different current standards. Choosing and selecting our raw materials is one of the keys to our production.
ANSI/ASME B16.9 45° Short Radius Elbow Marking & Packaging
ANSI/ASME B16.9 45° Short Radius Elbow Marking
ANSI/ASME B16.9 45° Short Radius Elbow Packaging
While marking we choose a specific item number as well different color shade to differentiate steel grades. We mark ANSI/ASME B16.9 45° Short Radius Elbow as needed with the most suitable & visible marking technique.
Our experienced warehouse guys are always ready to pick out your order and get it ready for delivery. we package and pack the ANSI/ASME B16.9 45° Short Radius Elbow according to customers’ specification & as per the appropriate method such as wooden crate, strapped pallet, overseas packing (ISPM15). Do you know Hardened containers (plywood, metal) that are not banded should have an exterior lock or clamp. (Glue, nails and screws are not sufficient.) We know proper packaging of your freight is the best way to ensure that your goods arrive safely at their destination.
Shipping Policy
Delivery time and delivery dates are based on the "type and quantity" of steel ordered. Our sales team will provide a delivery schedule when quoting to you. On rare occasions the delivery schedule may change so please check with our sales department when placing any orders.
Orders will be sent out within 2-3 business days, and may take up to 5-10 business days in transit. If ANSI/ASME B16.9 45° Short Radius Elbow is out of stock, orders may take up to 2-4 weeks to ship. MD Expots LLP will notify buyer if this situation occurs.
Why choose us for ANSI/ASME B16.9 45° Short Radius Elbow?
1. On-Time Delivery Every Time
2. Competitive Prices
3. High Quality Product
4. Quick Response by Email & by Phone
5. An ISO 9001:2008 Certified Company
We are Experts in exporting ANSI/ASME B16.9 45° Short Radius Elbow & Other Stainless Steel Flanges to over 45 countries including UAE, UK, Dubai, Iran, Iraq, Qatar, Bahrain, Oman, Yemen, Lebanon, Jordan, Saudi Arabia, Malaysia, Indonesia, Singapore, Australia, New Zealand, USA, Canada, Mexico, Brazil, Netherlands, Germany, Italy, Spain, Serbia, Kuwait, Peru, Nigeria, Poland, South Africa, Denmark, Turkey, Egypt, Venezuela, Kuwait, Madagascar, Angloa & Srilanka & are major pipe Fittings & Flanges Suppliers in Saudi Arabia etc. Our ready stock of ANSI/ASME B16.9 45° Short Radius Elbow is also available in top countries such as Dubai, United States, United Arab Emirates, Indonesia, Israel, Thailand, Vietnam, Kuwait, United Kingdom, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Saudi Arabia, Brazil, Colombia, Iran, Italy, Denmark etc. who can help you to buy ANSI/ASME B16.9 45° Short Radius Elbow, Pipe fittings and joints and can provide you all the information as per your requirements.
Quality assurance is carried throughout the process from the raw material purchasing to processing, packing, storage and transportation. Every process strictly conforms to the ISO 9001:2008. "Quality First" is our promise forever to any of our customers. Our ANSI/ASME B16.9 45° Short Radius Elbow are 100% inspected before being packed and dispatched & all our materials are tested to International standards. We have 3 levels to check quality of ANSI/ASME B16.9 45° Short Radius Elbow. We also accept any Third Party of Inspection appointed by our customers, such as Lloyd’s Register, TUV, DNV, BV, SGS, IEI, SAI and etc.
Third Party Inspection
We offer to our clients the third party inspection of ANSI/ASME B16.9 45° Short Radius Elbow from reputed agencies such as LLOYDS, EIL, H&G, TCE, PDIL, MECONS, M.N. DASTUR & Co., Bax council, DNV, Bureau Veritas, DPG, SGS, IRS, and many others.
| THIRD PARTY INSPECTION AGENCIES SERVICES UNDER OUR SCOPE | |
| Tecnimont ICB Limited | ICB |
| DET Norske Veritas | DNV |
| Fact Engineering And Design Organisation | FEDO |
| Projects & Developments India Limited | PDIL |
| Baxcounsel Inspection Bureau Pvt. Ltd. | Baxcounsel |
| Bureau Veritas Industrial Services (India) Pvt. Ltd. | BVIS |
| Industrial Consultancy And Inspection Services | ICIS |
| Metallurgical & Engineering Consultants (India) Ltd. | MECON |
| Nuclear Power Corporation Of India Ltd. | NPCL |
| Engineers India Limited | EIL |
| Bharat Heavy Electricals Limited | BHEL |
| UHDE India Limited | UHDE |
| Pipecon Consultants (India) Pvt. Ltd. | PIPECON |
| Indian Boiler Regulations | IBR |
