Stainless steel, Carbon Steel, alloy Steel & High Nickel Threaded Fittings – Dimensions ANSI/ASME B 16.11

Stainless Steel Pipe Fittings Stainless Steel Pipe Fittings Stainless Steel Pipe Fittings Stainless Steel Pipe Fittings
Stainless Steel Pipe Fittings Stainless Steel Pipe Fittings Stainless Steel Pipe Fittings

DIMENSIONS OF THREADED FITTINGS (ANSI B 16.11)

DIMENSIONS OF THREADED FITTINGS (ANSI B 16.11) (in mm)
Nominal
Pipe
Size
A C H G Min(1)
2000 3000 6000 2000 3000 6000 2000 3000 6000 2000 3000 6000 B L2
1/8” 20.57 20.57 24.63 17.52 17.52 18.93 22.35 22.30 25.40 3.175 3.110 6.350 6.303 6.700
1/4” 20.57 24.63 28.44 17.52 18.93 22.35 22.35 25.40 33.20 3.175 3.302 6.604 8.128 10.205
3/8” 24.63 28.44 33.27 18.93 22.35 25.40 25.40 33.27 38.10 3.175 2.505 6.985 9.544 10.298
1/2” 28.44 33.27 38.10 44.45 25.40 28.44 33.27 38.10 45.97 3.175 4.089 8.153 10.922 13.555
3/4” 33.27 38.10 44.45 25.40 28.44 33.27 38.10 45.97 55.62 3.175 4.318 8.534 12.700 13.860
1” 38.10 44.45 50.80 28.44 33.27 35.05 45.97 55.62 61.97 3.688 4.978 9.931 14.732 17.343
1-1/4” 44.45 50.80 60.45 33.27 35.04 42.92 55.62 61.97 75.43 3.886 5.283 10.591 17.018 17.952
1-1/2” 50.80 60.45 76.02 33.05 42.92 43.68 61.97 75.43 84.07 4.013 5.562 11.074 17.780 18.376
2” 60.45 63.50 82.55 42.92 43.68 52.32 75.43 84.07 101.60 4.267 7.137 12.090 19.050 19.138
2-1/2” 76.20 82.55 95.25 52.37 52.32 63.50 91.94 101.60 120.65 5.613 7.645 15.290 23.622 28.905
3” 85.85 95.25 106.42 63..50 63.50 79.24 109.47 120.65 146.05 5.994 8.839 18.637 25.408 30.500
4” 106.42 114.30 114.30 78.24 78.24 79.24 146.05 152.40 152.40 6.555 11.669 18.684 27.777 33.000

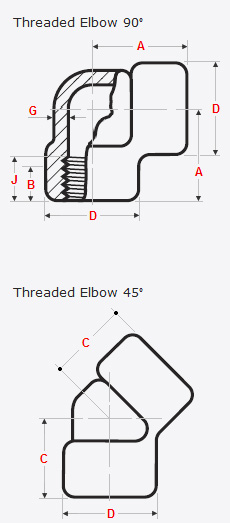

Dimensions Threaded Elbows -90°/45°- ASME B16.11

Dimensions NPS 1/2 to 4 – Class 2000

NPS Min Length
of Thread		 Outside Dia
of Band		 Minimum
WT		 Center to End
Threaded Elbow 90/45
B J D G 90°
A		 45°
C
1/2 10.9 13.6 33 3.18 28 22
3/4 12.7 13.9 38 3.18 33 25
1 14.7 17.3 46 3.68 38 28
1.1/4 17 18 56 3.89 44 33
1.1/2 17.8 18.4 62 4.01 51 35
2 19 19.2 75 4.27 60 43
2.1/2 23.6 28.9 92 5.61 76 52
3 25.9 30.5 109 5.99 86 64
4 27.7 33 146 6.55 106 79
NPS B J D G 90°
A		 45°
C
Min Length
of Thread		 Outside Dia
of Band		 Minimum
WT		 Center to End

Dimensions NPS 1/2 to 4 – Class 3000

NPS Min Length
of Thread		 Outside Dia
of Band		 Minimum
WT		 Center to End
Threaded Elbow 90/45
B J D G 90°
A		 45°
C
1/2 10.9 13.6 38 4.09 33 25
3/4 12.7 13.9 46 4.32 38 28
1 14.7 17.3 56 4.98 44 33
1.1/4 17 18 62 5.28 51 35
1.1/2 17.8 18.4 75 5.56 60 43
2 19 19.2 84 7.14 64 44
2.1/2 23.6 28.9 102 7.65 83 52
3 25.9 30.5 121 8.84 95 64
4 27.7 33 152 11.18 114 79
NPS B J D G 90°
A		 45°
C
Min Length
of Thread		 Outside Dia
of Band		 Minimum
WT		 Center to End

Dimensions NPS 1/2 to 4 – Class 6000

NPS Min Length
of Thread		 Outside Dia
of Band		 Minimum
WT		 Center to End
Threaded Elbow 90/45
B J D G 90°
A		 45°
C
1/2 10.9 13.6 46 8.15 38 28
3/4 12.7 13.9 56 8.53 44 33
1 14.7 17.3 62 9.93 51 35
1.1/4 17 18 75 10.59 60 43
1.1/2 17.8 18.4 84 11.07 64 44
2 19 19.2 102 12.09 83 52
2.1/2 23.6 28.9 121 15.29 95 64
3 25.9 30.5 146 16.64 106 79
4 27.7 33 152 18.67 114 79
NPS B J D G 90°
A		 45°
C
Min Length
of Thread		 Outside Dia
of Band		 Minimum
WT		 Center to End
General notes:

  • Dimensions are in millimeters unless otherwise indicated.
  • Dimension (B) is minimum length of perfect thread.
    The length of useful thread (B plus threads with fully formed roots and flat crests) shall not be less than J.
