Spectacle Blind Flanges Manufacturer, Supplier & Stockists
Highly acclaimed Manufacturer & Exporter presents best offer ever on Spectacle Blinds
We can supply customized Spectacle Blinds per customers’ specifications, we welcome small quantity order.
Spectacle Blinds
Contents
1 Spectacle Blinds Specification
2 Spectacle Blinds Dimensions
3 Spectacle Blinds Godown
4 Spectacle Blinds Marking & Packaging
5 Spectacle Blinds Shipping Policy
6 Why choose us for Spectacle Blinds
7 Best Offer ever on Spectacle Blinds
8 Spectacle Blinds Price (at Factory Price)
9 Spectacle Blinds Uses & Application
MD Expots LLP is Manufacturer, Stockists & Supplier of premium quality range of Spectacle Blind Flanges, Stainless Steel Flanges & Other Stainless Steel Pipe fittings that are manufactured under the expert guidance of our diligent workforce. we are highly experienced company in Spectacle Blind Flanges & other pipe fittings. our Spectacle Blind Flanges & Other Fitting products are manufactured using quality material and go through a rigorous quality check at all stages of production to ensure quality. Designed in compliance with international quality standards, these Spectacle Blind Flanges are corrosion resistance, sturdy and durable. we also supply Spectacle Blind Flanges & other pipe fittings Flanges in customized size. Our Product Supply Division offers a broad portfolio of Steel Flanges and Spectacle Blinds.
Quality assurance is carried throughout the process from the raw material purchasing to processing, packing, storage and transportation. Every process strictly conforms to the ISO 9001:2008. "Quality First" is our promise forever to any of our customers. Our products are 100% inspected before being packed and dispatched & all our materials are tested to International standards. We have 3 levels to check quality of our products. We also accept any Third Party of Inspection appointed by our customers, such as Lloyd’s Register, TUV, DNV, BV, SGS, IEI, SAI and etc.
Spectacle Blinds
Spectacle Flanges Range
½" (15 NB) to 48" (1200NB) in 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS ASA 150, ASA 300, PN 6,10,16,25, 40,64,100,160 ETC. Available with NACE MR 01-75
Stainless Steel Spectacle Flanges
Grade : 304, 304L, 304H, 309, 310, 310S, 316, 316Ti, 316 L, 317, 317L, 321, 347, 347 H, 409, 410, 410S, 420, 430L
Duplex Steel Spectacle Flanges
Grade : 2205 (UNS No. S31803), 2507 (UNS No. S32750)
Nickel Alloy Spectacle Flanges
Grade : Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II)
Copper Alloy Spectacle Flanges
Grade : UNS No. C 10100, 10200, 10300, 10800, 12000, 12200, 70600, 71500, UNS No. C 70600 (Cu -Ni- 90/10), C 71500 (Cu -Ni- 70/30)

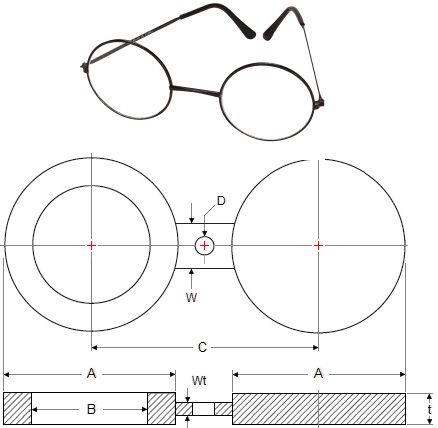

Dimensions
Spectacle Flanges Standard
- ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
- DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
- B.S : BS4504 , BS4504, BS1560, BS10
- OTHER : PLATE, PLATE BLANK
Spectacle Blinds Flanges ANSI B16.5 Class 150 Flanges
ANSI flanges are available at Steel Tubes India Flange in class 150. The ANSI flanges in the class 150 specification cover slip-ons, weld necks, lap joints, blinds, threaded and socket weld flanges. ANSI flanges for class 150 are provided by Steel Tubes India Flange as forgings unless otherwise specified.
Class 150 SPECTACLE BLINDS
| NPS | Outside Ø A |
Inside Ø B |
Centerline C |
Thickness t |
Web Width W |
| 1/2 | 45 | 16 | 60 | 3 | 38 |
| 3/4 | 54 | 21 | 70 | 3 | 38 |
| 1 | 64 | 27 | 80 | 3 | 38 |
| 1¼ | 73 | 42 | 90 | 6.4 | 38 |
| 1½ | 83 | 48 | 100 | 6.4 | 38 |
| 2 | 102 | 61 | 120 | 6.4 | 51 |
| 2½ | 107 | 73 | 140 | 6.4 | 51 |
| 3 | 133 | 89 | 150 | 6.4 | 64 |
| 3½ | 159 | 102 | 175 | 9.7 | 64 |
| 4 | 172 | 114 | 190 | 9.7 | 64 |
| 5 | 194 | 141 | 215 | 9.7 | 76 |
| 6 | 219 | 168 | 240 | 12.7 | 76 |
| 8 | 276 | 219 | 300 | 12.7 | 76 |
| 10 | 337 | 273 | 360 | 15.7 | 102 |
| 12 | 406 | 324 | 430 | 19.1 | 102 |
| 14 | 448 | 356 | 475 | 19.1 | 108 |
| 16 | 511 | 406 | 460 | 22.4 | 108 |
| 18 | 546 | 457 | 580 | 25.4 | 114 |
| 20 | 603 | 508 | 635 | 28.4 | 121 |
| 24 | 714 | 610 | 750 | 31.8 | 140 |
| NPS | Outside Ø A |
Inside Ø B |
Centerline C |
Thickness t |
Web Width W |
Spectacle Blinds Flanges ANSI B16.5 Class 300 Flanges
ANSI flanges are available at Steel Tubes India Flange in class 300. The ANSI flanges in the class 300 specification cover slip-ons, weld necks, lap joints, blinds, threaded and socket weld flanges. ANSI flanges for class 300 are provided by Steel Tubes India Flange as forgings unless otherwise specified.
Class 300 SPECTACLE BLINDS
| NPS | Outside Ø A |
Inside Ø B |
Centerline C |
Thickness t |
Web Width W |
| 1/2 | 51 | 16 | 65 | 6.4 | 38 |
| 3/4 | 64 | 21 | 80 | 6.4 | 38 |
| 1 | 70 | 27 | 90 | 6.4 | 38 |
| 1¼ | 79 | 42 | 100 | 6.4 | 38 |
| 1½ | 92 | 48 | 115 | 6.4 | 38 |
| 2 | 108 | 61 | 125 | 9.7 | 51 |
| 2½ | 127 | 73 | 150 | 9.7 | 51 |
| 3 | 146 | 89 | 170 | 9.7 | 64 |
| 3½ | 162 | 102 | 185 | 12.7 | 64 |
| 4 | 178 | 114 | 200 | 12.7 | 64 |
| 5 | 213 | 141 | 235 | 15.7 | 76 |
| 6 | 248 | 168 | 270 | 15.7 | 76 |
| 8 | 305 | 219 | 330 | 22.4 | 76 |
| 10 | 359 | 273 | 385 | 25.4 | 102 |
| 12 | 419 | 324 | 450 | 28.4 | 102 |
| 14 | 483 | 356 | 515 | 31.8 | 108 |
| 16 | 536 | 406 | 570 | 38.1 | 108 |
| 18 | 594 | 457 | 630 | 41.1 | 114 |
| 20 | 651 | 508 | 685 | 44.5 | 121 |
| 24 | 772 | 610 | 810 | 50.8 | 140 |
| NPS | Outside Ø A |
Inside Ø B |
Centerline C |
Thickness t |
Web Width W |
Spectacle Blinds Flanges ANSI B16.5 Class 400 Flanges
ANSI flanges are available at Steel Tubes India Flange in class 400. The ANSI flanges in the class 400 specification cover slip-ons, weld necks, lap joints, blinds, and threaded flanges. ANSI flanges for class 400 are provided by Steel Tubes India Flange as forgings unless otherwise specified.
Spectacle Blinds Flanges ANSI B16.5 Class 600 Flanges
ANSI flanges are available at Steel Tubes India Flange in class 600. The ANSI flanges in the class 600 specification cover slip-ons, weld necks, lap joints, blinds, threaded and socket weld flanges. ANSI flanges for class 600 are provided by Steel Tubes India Flange as forgings unless otherwise specified.
Class 600 SPECTACLE BLINDS
| NPS | Outside Ø A |
Inside Ø B |
Centerline C |
Thickness t |
Web Width W |
| 1/2 | 51 | 16 | 65 | 6.4 | 38 |
| 3/4 | 64 | 21 | 80 | 6.4 | 38 |
| 1 | 70 | 27 | 90 | 6.4 | 57 |
| 1¼ | 79 | 37 | 100 | 9.7 | 57 |
| 1½ | 92 | 43 | 115 | 9.7 | 67 |
| 2 | 108 | 55 | 125 | 9.7 | 57 |
| 2½ | 127 | 67 | 150 | 12.7 | 67 |
| 3 | 146 | 83 | 170 | 12.7 | 67 |
| 3½ | 159 | 96 | 185 | 15.7 | 76 |
| 4 | 191 | 108 | 215 | 15.7 | 76 |
| 5 | 238 | 135 | 265 | 19.1 | 86 |
| 6 | 264 | 162 | 290 | 22.4 | 86 |
| 8 | 318 | 212 | 350 | 28.4 | 95 |
| 10 | 397 | 265 | 430 | 35.1 | 105 |
| 12 | 454 | 315 | 490 | 41.1 | 105 |
| 14 | 489 | 346 | 525 | 44.5 | 114 |
| 16 | 562 | 397 | 605 | 50.8 | 124 |
| 18 | 610 | 448 | 655 | 53.8 | 133 |
| 20 | 679 | 497 | 725 | 63.5 | 133 |
| 24 | 787 | 597 | 840 | 73.2 | 152 |
| NPS | Outside Ø A |
Inside Ø B |
Centerline C |
Thickness t |
Web Width W |
Spectacle Blinds Flanges ANSI B16.5 Class 900 Flanges
ANSI flanges are available at Steel Tubes India Flange in class 900. The ANSI flanges in the class 900 specification cover slip-ons, weld necks, lap joints, blinds, threaded and socket weld flanges. ANSI flanges for class 900 are provided by Steel Tubes India Flange as forgings unless otherwise specified.
| NPS | Outside Ø A |
Inside Ø B |
Centerline C |
Thickness t |
Web Width W |
| 1/2 | 60 | 16 | 80 | 6.4 | 38 |
| 3/4 | 67 | 21 | 90 | 6.4 | 41 |
| 1 | 76 | 27 | 100 | 6.4 | 57 |
| 1¼ | 86 | 37 | 110 | 9.7 | 57 |
| 1½ | 95 | 43 | 125 | 9.7 | 67 |
| 2 | 140 | 55 | 165 | 12.7 | 57 |
| 2½ | 162 | 67 | 190 | 12.7 | 67 |
| 3 | 165 | 83 | 190 | 15.7 | 67 |
| 4 | 203 | 108 | 235 | 19.1 | 76 |
| 5 | 244 | 135 | 280 | 22.4 | 86 |
| 6 | 286 | 162 | 320 | 25.4 | 86 |
| 8 | 356 | 212 | 395 | 35.1 | 95 |
| 10 | 432 | 265 | 470 | 41.1 | 105 |
| 12 | 495 | 315 | 535 | 47.8 | 105 |
| 14 | 518 | 346 | 560 | 53.8 | 114 |
| 16 | 572 | 397 | 615 | 60.5 | 124 |
| 18 | 635 | 448 | 685 | 66.5 | 133 |
| 20 | 696 | 497 | 750 | 73.2 | 133 |
| 24 | 835 | 597 | 900 | 88.9 | 152 |
| NPS | Outside Ø A |
Inside Ø B |
Centerline C |
Thickness t |
Web Width W |
Spectacle Blinds Flanges ANSI B16.5 Class 1500 Flanges
ANSI flanges are available at Steel Tubes India Flange in class 1500. The ANSI flanges in the class 1500 specification cover slip-ons, weld necks, lap joints, blinds, threaded and socket weld flanges. ANSI flanges for class 1500 are provided by Steel Tubes India Flange as forgings unless otherwise specified.
| NPS | Outside Ø A |
Inside Ø B |
Centerline C |
Thickness t |
Web Width W |
| 1/2 | 61 | 16 | 80 | 6.4 | 38 |
| 3/4 | 67 | 21 | 90 | 9.7 | 41 |
| 1 | 76 | 27 | 100 | 9.7 | 64 |
| 1¼ | 86 | 35 | 110 | 9.7 | 64 |
| 1½ | 95 | 41 | 125 | 12.7 | 70 |
| 2 | 140 | 53 | 165 | 12.7 | 70 |
| 2½ | 162 | 63 | 190 | 15.7 | 76 |
| 3 | 172 | 78 | 205 | 19.1 | 76 |
| 4 | 206 | 102 | 240 | 22.4 | 89 |
| 5 | 251 | 128 | 290 | 28.4 | 89 |
| 6 | 279 | 154 | 320 | 35.1 | 89 |
| 8 | 349 | 203 | 395 | 41.1 | 102 |
| 10 | 432 | 255 | 480 | 50.8 | 114 |
| 12 | 518 | 303 | 570 | 60.5 | 114 |
| 14 | 575 | 333 | 635 | 66.5 | 127 |
| 16 | 638 | 381 | 705 | 76.2 | 133 |
| 18 | 702 | 429 | 775 | 85.9 | 146 |
| 20 | 752 | 478 | 830 | 95.3 | 152 |
| 24 | 899 | 575 | 990 | 111.3 | 178 |
| NPS | Outside Ø A |
Inside Ø B |
Centerline C |
Thickness t |
Web Width W |
Spectacle Blinds Flanges ANSI B16.5 Class 2500 Flanges
ANSI flanges are available at Steel Tubes India Flange in class 2500. The ANSI flanges in the class 2500 specification cover slip-ons, weld necks, lap joints, blinds, and threaded flanges. ANSI flanges for class 2500 are provided by Steel Tubes India Flange as forgings unless otherwise specified.
| NPS | Outside Ø A |
Inside Ø B |
Centerline C |
Thickness t |
Web Width W |
| 1/2 | 67 | 16 | 90 | 9.7 | 38 |
| 3/4 | 73 | 21 | 95 | 9.7 | 41 |
| 1 | 83 | 27 | 110 | 9.7 | 64 |
| 1¼ | 102 | 35 | 130 | 12.7 | 64 |
| 1½ | 114 | 41 | 145 | 15.7 | 70 |
| 2 | 143 | 53 | 170 | 15.7 | 70 |
| 2½ | 165 | 63 | 195 | 19.1 | 76 |
| 3 | 194 | 78 | 230 | 22.4 | 76 |
| 4 | 232 | 102 | 275 | 28.4 | 89 |
| 5 | 276 | 128 | 325 | 35.1 | 89 |
| 6 | 314 | 154 | 370 | 41.1 | 89 |
| 8 | 384 | 198 | 440 | 53.8 | 102 |
| 10 | 473 | 248 | 540 | 66.5 | 114 |
| 12 | 546 | 289 | 620 | 79.2 | 114 |
| NPS | Outside Ø A |
Inside Ø B |
Centerline C |
Thickness t |
Web Width W |
General notes:
- Dimensions are in millimeters unless otherwise indicated.
- D = Hole size (where required) should be the same as the flange bolt hole. In practice, these dimensions have been rounded round off upwards.
- Wt = Thickness of the web (or tie bar) should be 6 mm minimum, or equal to Thickness (t) if less than 6 mm.
- Spectacle Blinds Flanges should be made from a plate or forging specification, approved for use by ASME B31.3, of essentially the same chemical composition as the mating flanges and piping involved.
- Spectacle Blinds Flanges according to ASME B16.48 may be used for installation between ASME B16.5 flanges
- Depending on a customer specification, some dimensions can be different from what on this page is defined
