Steel Pipe Fittings Suppliers In Canada
Manufacturer of high integrity Steel Pipe Fittings in Canada, Buttweld Fittings, threaded Fittings, Forged Fittings
Steel Tee, Steel Elbow, Steel Reducer, Astm A234 Wpb, Astm A420 Wpl6, Astm A234 Wp1, Wp5, Wp9, Wp11, Wp22, Wp91, Astm A403, Astm A182 Fittings Supplier in Canada
Buttweld Seamless And Welded Steel Pipe Fittings Manufacturer, Socket Weld/Threaded Pipe Fittings Exporter in Canada

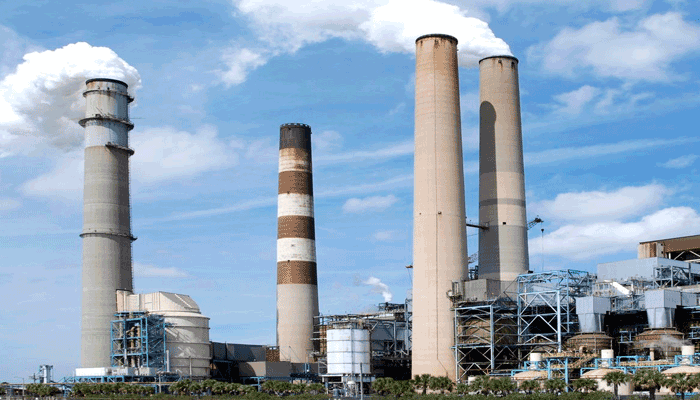

Supplied Carbon Steel Buttweld Pipe Fittings To Thermal Power Plant, Canada
Approved Vendors & Suppliers Of :
ASTM A403 WP 304L Fittings | ASTM A403 WP316L | ASTM A403 WP304 Fittings | ASTM A182 304L | ASTM A182 316L | Compression Fittings | 24″ Fabricated 304 Fittings | 36″ ASTM A403 WP 316L Elbow | 30″ ASTM A403 WP 304L Elbow | ASTM A182 304L 6000# Threaded Elbow
38″ Elbow ASTM A234 WP5 | 24″ Equal Tee ASTM A234 WP22 | A182 F91 Forged Socket Weld Elbow 6000# | A182 F22 Socket Weld Tee | A182 F5 Forged Threaded Fittings | A.S. Forged Fittings | Custom Size Forged A.S. Fittings | Custom Size A.S. Buttweld Fittings | ASTM A234 WP11 Buttweld Fittings
36″ Elbow ASTM A234 WPB | 24″ Equal Tee ASTM A234WPB | A105/105N Forged Socket Weld Elbow 6000# | A105/105N Socket Weld Tee | A105/105N Forged Threaded Fittings | C.S. Forged Fittings | ASTM A420 WPL6 Buttweld Fittings | ASTM A350 LF2 Forged Fittings
A rejection rate of less than one percent has consolidated the claim. The primary reason for this is the priority that we give to complete satisfaction of the customer. This includes our excellent after sales services,We have supplied
Steel Pipe Fittings to Petrochemical plants, Nuclear power projects, Oil & gas industries in
India, USA,
Canada,
Mexico,
Brazil, Argentina,
Chile,
Venezuela,
Turkey,
Italy,
Romania,
Germany,
Netherlands,
Belgium,
United Kingdom,
SpainUseful Info
Stainless Steel Pipe Fittings Production Range
| Specification |
ASTM A182 / A403 & ASME SA182 / SA403 |
| Grades |
201, 202, 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L |
| Type |
Seamless / Welded / Fabricated |
| Bending Radius |
R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Range |
½”NB to 48″NB in Sch 10s, 40s, 80s, 160s, XXS. |
| Dimensions |
ANSI/ASME B16.9, B16.28, MSS-SP-43. |
Chrome Moly/Alloy Steel Pipe Fittings Production Range
| Grades |
Chrome Moly Grades P1, P5, P9, P11, P22, P91 |
| Specification |
A/SA234 WP1, WP5, WP9, WP11, WP22, WP91 | A/SA182 F1, F5, F9, F11, F22, F91 |
| Type |
Seamless / Welded / Fabricated / Forged |
| Bending Radius |
R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Range |
½”NB to 48″NB in Sch 10s, 40s, 80s, 160s, XXS. |
| Dimensions |
ANSI/ASME B16.9, B16.28, MSS-SP-43. |
Carbon Steel Pipe Fittings Production Range
| Grade Specification |
Carbon Steel: ASTM/ASME A234 WPB / A860 – MSS-SP-75 WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70 Low temperature Steel: A420 WPL3 / A420 WPL6 |
| Type |
Seamless / Welded / Fabricated |
| Bending Radius |
R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Range |
½”NB to 48″NB in Sch 10s, 40s, 80s, 160s, XXS. |
| Dimensions |
ANSI/ASME B16.9, B16.28, MSS-SP-43. |
ASTM A403, ASTM A234 WPB, ASTM A420 WPL6 Pipe Fittings Production Range
| Type |
Seamless / Welded / Fabricated |
| Bending Radius |
R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Range |
½”NB to 48″NB in Sch 10s, 40s, 80s, 160s, XXS. |
| Dimensions |
ANSI/ASME B16.9, B16.28, MSS-SP-43. |
ASTM A234 WP5, WP9, WP11, WP12, WP22, WP91 Buttweld Fittings Production Range
| Type |
Seamless / Welded / Fabricated |
| Bending Radius |
R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Range |
½”NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. |
| Dimensions |
ANSI/ASME B16.9, B16.28, MSS-SP-43. |
ASTM A403 WP 304, WP304L, WP316L Pipe Fittings Chemical Composition
| Wrought Austenitic ASTM A403 Stainless Steel Piping Fittings |
| Grade |
Composition, % |
| C |
Mn |
P |
S |
Si |
Ni |
Cr |
Mo |
| WP 304 |
0.08 |
2 |
0.045 |
0.03 |
1 |
8.0-11.0 |
18.0-20.0 |
– |
| WP 304L |
0.035 |
2 |
0.045 |
0.03 |
1 |
8.0-13.0 |
18.0-20.0 |
– |
| WP 316 |
0.08 |
2 |
0.045 |
0.03 |
1 |
10.0-14.0 |
16.0-18.0 |
2.00-3.00 |
| WP 316L |
0.035 |
2 |
0.045 |
0.03 |
1 |
10.0-16.0 |
16.0-18.0 |
2.00-3.00 |
ASTM A403 WP 304, WP304L, WP316L Pipe Fittings Mechanical Properties
| Tensile and Elongation Requirements |
WP304, WP316 |
WP304L, WP316L |
| Yield Strength, min, ksi [MPa] |
30[205] |
25[170] |
| Tensile Strength, min, ksi [MPa] |
75[515] |
70[485] |
| Elongation (1) |
Longitudinal |
28 |
28 |
| Transverse |
20 |
20 |
ASTM A234 WP5, WP9, WP11, WP12, WP22, WP91 Buttweld Fittings Chemical Composition
| Chemical Composition Content % |
| Grade |
C |
Mn |
Si |
S |
P |
Cr |
Mo |
| A234WP5 |
≤0.15 |
≤0.6 |
≤0.5 |
≤0.04 |
≤0.03 |
4-6 |
0.44-0.65 |
| A234WP11 |
0.05-0.2 |
0.3-0.8 |
0.5-1 |
≤0.030 |
≤0.030 |
1-1.5 |
0.44-0.65 |
| A234WP22 |
0.05-0.15 |
0.3-0.6 |
≤0.5 |
≤0.04 |
≤0.04 |
2-2.5 |
0.87-1.13 |
| A234WP91 |
0.08-0.12 |
0.3-0.6 |
0.2-0.5 |
≤0.02 |
≤0.015 |
8-9.5 |
0.85-1.05 |
ASTM A234 WP5, WP9, WP11, WP12, WP22, WP91 Buttweld Fittings Mechanical Properties
| Mechanical Properties |
| Grade |
Tensile Strength (Mpa) |
Yield Strength (Mpa) |
Elongation % |
| A234WPB |
415-585 |
≥240 |
≥30 |
| A234WP5 |
415-585 |
≥205 |
≥20 |
| A234WP11 |
415-585 |
≥205 |
≥20 |
| A234WP22 |
415-585 |
≥205 |
≥20 |
| A234WP91 |
≥590 |
≥415 |
≥20 |
ASTM A420 WPL6 Pipe Fittings, Low Temperature Steel Buttweld Fittings Chemical Composition
| Chemical Composition % of ASTM A420 WPL6 Pipe Fittings |
| |
C |
Mn |
P |
S |
Si |
Ni |
Cr |
Mo |
Cu |
Cb |
V |
| A420 WPL6 |
0.3 |
0.050-1.35 |
0.035 |
0.04 |
0.15-0.40 |
0.4 |
0.3 |
0.12 |
0.4 |
0.02 |
0.08 |
ASTM A420 WPL6 Pipe Fittings, LTCS, Low Temperature Steel Buttweld Fittings Mechanical Properties
| Mechanical Properties of Astm A420 WPL6 Pipe Fittings |
| Tensile Strength (KSI) |
Yield Strength (KSI) |
| 60-95 |
35 |
ASTM A234 WPB Pipe Fittings Chemical Composition %
| Grade |
C |
Mn |
P |
S |
Si |
Cr |
Mo |
Ni |
Cu |
V |
Nb |
| WPB |
0.3 |
0.29-1.06 |
0.05 |
0.058 |
0.1min |
0.4 |
0.15 |
0.4 |
0.4 |
0.08 |
0.02 |
| WPC |
0.35 |
0.29-1.06 |
0.05 |
0.058 |
0.1min |
0.4 |
0.15 |
0.4 |
0.4 |
0.08 |
0.02 |
ASTM A234 WPB Buttweld Pipe Fittings Mechanical Properties %
| Tensile Requirements |
WPB |
WPC |
| Tensile Strength, min, ksi[MPa] |
60-85 [415-585] |
70-95 [485-655] |
| Yield Strength, min, ksi[MPa] |
32 [240] |
40 [275] |
Steel Pipe Fittings Origin & Manufacturers
Origin: Indian Origin, European Origin, Japanese Origin, US Origin, Korea Origin, Thailand Origin, Taiwan Origin Manufacturers:
