We at MD Expots LLP believes in long term relationship with our clients worldwide, Required Quality in reasonable price of ANSI/ASME B16.9 180° Short Radius Elbow are always our main priority. We are known as specialist in ANSI/ASME B16.9 180° Short Radius Elbow,70% of our customers are associated with us for their regular requirements of ANSI/ASME B16.9 180° Short Radius Elbow, Chinese suppliers also procures ANSI/ASME B16.9 180° Short Radius Elbow from us bcz. We have the specialization & 35 years of experience to manufacture ANSI/ASME B16.9 180° Short Radius Elbow.
MD Expots LLP is Manufacturer, Stockists & Supplier of premium quality range of ANSI/ASME B16.9 180° Short Radius Elbow, Stainless Steel Flanges & Other Stainless Steel Pipe fittings that are manufactured under the expert guidance of our diligent workforce. we are highly experienced company in ANSI/ASME B16.9 180° Short Radius Elbow & other pipe fittings. our ANSI/ASME B16.9 180° Short Radius Elbow & Other Fitting products are manufactured using quality material and go through a rigorous quality check at all stages of production to ensure quality. Designed in compliance with international quality standards, these ANSI/ASME B16.9 180° Short Radius Elbow are corrosion resistance, sturdy and durable. we also supply ANSI/ASME B16.9 180° Short Radius Elbow & other pipe fittings Flanges in customized size. Our Product Supply Division offers a broad portfolio of Steel Flanges and ANSI/ASME B16.9 180° Short Radius Elbow. When you place an order with MD Expots LLP, you will receive the products that will stand up in service from people that will stand behind their product.

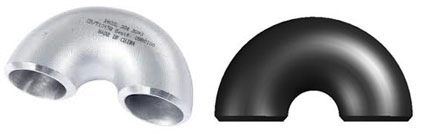

ANSI/ASME B16.9 180° Short Radius Elbow
| Standards: | ANSI – B 16.9 ASTM A403 – ASME SA403 – ‘Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings’ API 590-605 ASME B16.9 – ‘Factory-Made Wrought Buttwelding Fittings” ASME B16.25 – ‘Buttwelding Ends’ ASME B16.28 – ‘Wrought Steel Buttwelding Short Radius Elbows and Returns’ MSS SP-43 – ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications’ |
| Schedule: | Sch 5 TO Sch XXS. |
| Sizes: | Diameters – from 21,3 to 711 mm. Wall Thickness – from 2 to 40 mm. |
| Materials: | Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30 Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
| Type: | Butt Weld (BW) |
| Thickness: | Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc. |
| Dimension: | ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313 |
Dimensions

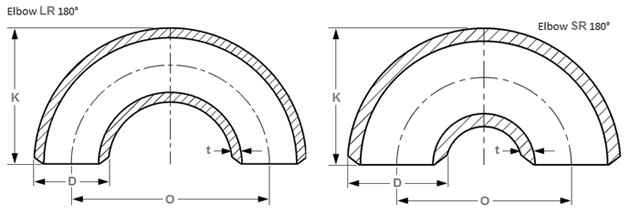

Dimensions Butt Weld Elbows 180° LR & SR ASME B16.9
| NPS | O.D. D |
180° Long Radius | 180° Short Radius | ||
| Center to Center O |
Back to Face K |
Center to Center O |
Back to Face K |
||
| 1/2 | 21.3 | 76 | 48 | - | - |
| 3/4 | 26.7 | 76 | 51 | - | - |
| 1 | 33.4 | 76 | 56 | 51 | 41 |
| 1¼ | 42.2 | 95 | 70 | 64 | 52 |
| 1½ | 48.3 | 114 | 83 | 76 | 62 |
| 2 | 60.3 | 152 | 106 | 102 | 81 |
| 2½ | 73 | 190 | 132 | 127 | 100 |
| 3 | 88.9 | 229 | 159 | 152 | 121 |
| 3½ | 101.6 | 267 | 184 | 178 | 140 |
| NPS | O.D. D |
180° Long Radius | 180° Short Radius | ||
| Center to Center O |
Back to Face K |
Center to Center O |
Back to Face K |
||
|
|||||
| NPS | O.D. D |
180° Long Radius | 180° Short Radius | ||
| Center to Center O |
Back to Face K |
Center to Center O |
Back to Face K |
||
| 4 | 114.3 | 305 | 210 | 203 | 159 |
| 5 | 141.3 | 381 | 262 | 254 | 197 |
| 6 | 168.3 | 457 | 313 | 305 | 237 |
| 8 | 219.1 | 610 | 414 | 406 | 313 |
| 10 | 273 | 762 | 518 | 508 | 391 |
| 12 | 323.8 | 914 | 619 | 610 | 467 |
| 14 | 355.6 | 1067 | 711 | 711 | 533 |
| 16 | 406.4 | 1219 | 813 | 813 | 610 |
| 18 | 457 | 1372 | 914 | 914 | 686 |
| 20 | 508 | 1524 | 1016 | 1016 | 762 |
| 22 | 559 | 1676 | 1118 | 1118 | 838 |
| 24 | 610 | 1829 | 1219 | 1219 | 914 |
| NPS | O.D. D |
180° Long Radius | 180° Short Radius | ||
| Center to Center O |
Back to Face K |
Center to Center O |
Back to Face K |
||
Dimensions are in millimeters unless otherwise indicated. Wall thickness (t) must be specified by customer.
Dimensional Tolerances of Butt Weld Elbows 180° LR and SR ASME B16.9
| Nominal Pipe Size | 1/2 to 2½ | 3 to 3½ | 4 | 5 to 8 | 10 to 18 | 20 to 24 |
| Outside Diameter at Bevel (D) |
+ 1.6 – 0.8 |
1.6 | 1.6 | + 2.4 – 1.6 |
+ 4 – 3.2 |
+ 6.4 – 4.8 |
| Inside Diameter at End | 0.8 | 1.6 | 1.6 | 1.6 | 3.2 | 4.8 |
| Center to Center (O) | 6 | 6 | 6 | 6 | 10 | 10 |
| Back to Face (K) | 6 | 6 | 6 | 6 | 6 | 6 |
| Wall Thickness (t) | Not less than 87.5% of Nominal Wall Thickness | |||||
Dimensional tolerances are in millimeters unless otherwise indicated and are equal ± except as noted.
ELBOWS – Ansi 16.9 tolerances
| DIMENSIONAL TOLERANCES – ELBOWS | |||||||
| For all fittings | Elbows 90/45 deg | 180° Returns | |||||
| Nominal Pipe Size (NPS) | Outside Ø at Bevel |
Inside Ø at End |
Wall Thickness t / t1 |
Center to End Dim. A-B-C-M | Center to Center Dim. O |
Back to Face Dim. K |
Align- ment of Ends U |
| 1/2 a 2 1/2 | 1 | 0,8 | Not | 2 | 7 | 7 | 1 |
| 3 a 3 1/2 | 1 | 1,6 | less | 2 | 7 | 7 | 1 |
| 4 | +2 -1 | 1,6 | than | 2 | 7 | 7 | 1 |
| 5 a 6 | +3 -1 | 1,6 | 87,50% | 2 | 7 | 7 | 1 |
| 8 | 2 | 1,6 | of nominal | 2 | 7 | 7 | 1 |
| 10 | +4 -3 | 3,2 | tickness | 2 | 7 | 7 | 2 |
| 12 a 18 | +4 -3 | 3,2 | 3 | 10 | 7 | 2 | |
| 20 a 24 | +6 -5 | 4,8 | 3 | 10 | 7 | 2 | |
| 26 a 30 | +7 -5 | 4,8 | 3 | ….. | ….. | ….. | |
| 32 a 48 | +7 -5 | 4,8 | 5 | ….. | ….. | ….. | |
| Angularity Tolerances | ||
| ND | Max off angle | Max off plane |
| Q | P | |
| 1/2 a 4 | 1 | 2 |
| 5 a 8 | 2 | 4 |
| 10 a 12 | 3 | 5 |
| 14 a 16 | 3 | 7 |
| 18 a 24 | 4 | 10 |
| 26 a 30 | 5 | 10 |
| 32 a 42 | 5 | 13 |
| 44 a 48 | 5 | 20 |
ELBOWS – End welding bevels
