Yaman Steel has established itself as a reliable manufacturer and supplier of Monel Spectacle Flanges right in the heart of Mumbai, India. They provide top-notch flange solutions tailored for specialized piping needs. Crafted from high-quality Monel alloys and utilizing precise engineering methods, these flanges are built to last, offering impressive durability, corrosion resistance, and dependable performance. Yaman Steel’s Monel Spectacle Flanges adhere to international standards, making them perfect for isolating or bypassing sections of a pipeline without causing any disruption to the system. With a strong commitment to quality, timely delivery, and customer satisfaction, the company caters to a wide range of industrial sectors both locally and globally.

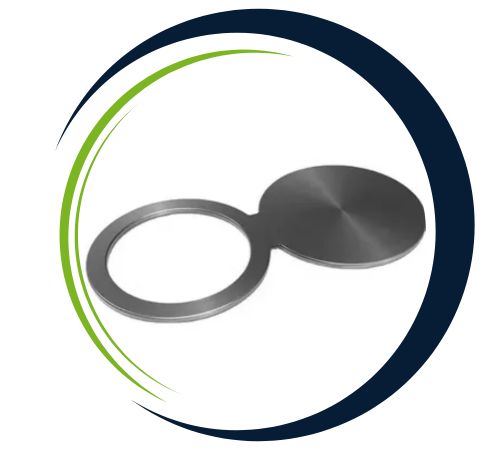

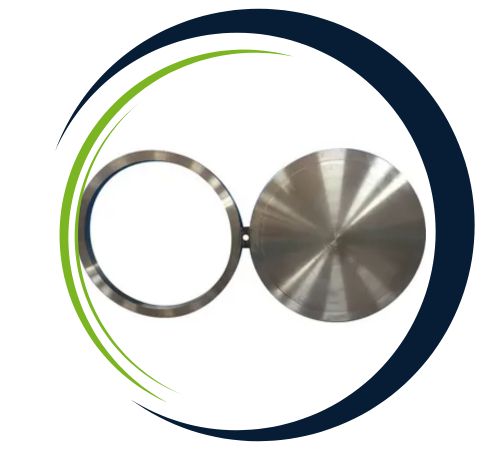

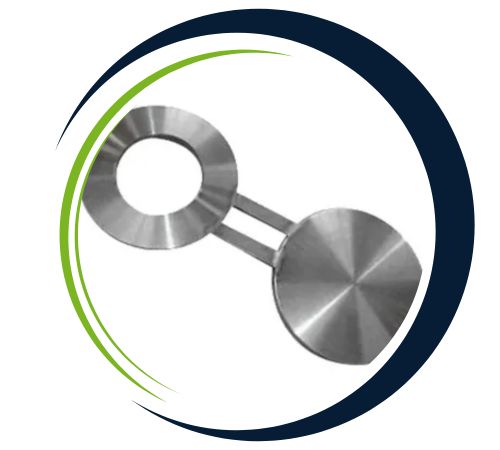

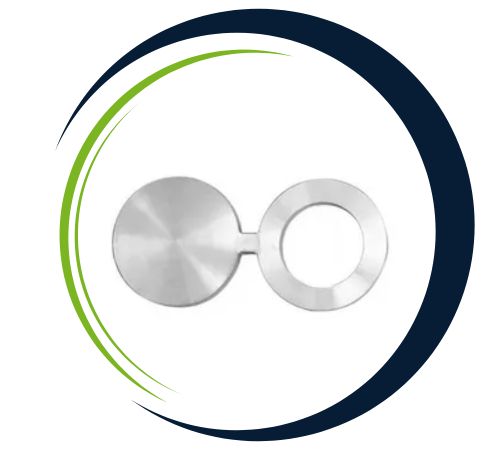

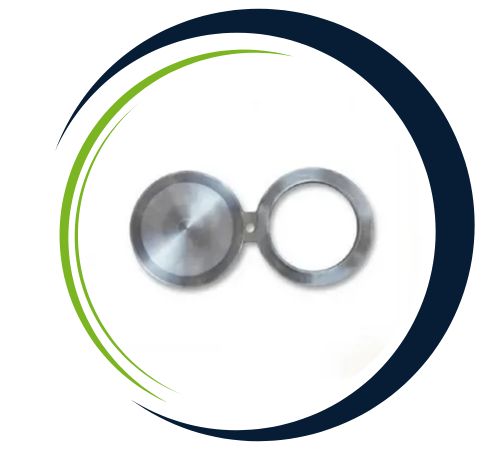

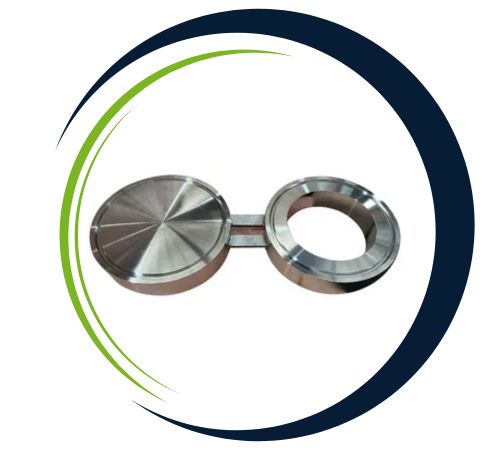

Monel Spectacle Flanges are composed of nickel-copper alloys that boast a high nickel content, along with copper and small amounts of iron, manganese, carbon, and silicon. This unique blend gives them outstanding resistance to corrosion, oxidation, and tough chemical environments. On the mechanical side, these flanges deliver impressive tensile and yield strength, toughness, and resistance to stress corrosion cracking. The distinctive spectacle design, featuring a solid plate paired with an open ring, facilitates easy pipeline isolation and flow control while ensuring structural integrity even under moderate pressure and temperature conditions.
| Specification | ASTM B564 / ASME SB564 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MAlloy S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| PRESSURE Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| PRESSURE Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Premonel machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange B.S: BS4504 , BS3293, BS1560, BS10 AS 2129: Table D; Table E; Table H ANSI B16.5, ANSI B16.47 Series A & B, MAlloy SP44, ASA, API-605, AWWA, Custom Drawings ANSI : ANSI B16.5, ANSI B16.47(API605), MAlloy SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47, MAlloy SP44, ANSI B16.36, ANSI B16.48 American standard (ANSI) German (DIN) British standard (BS) DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| Monel 400 | 2.4360 | N04400 | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 | NU-30M | NiCu30Fe |
| Monel K500 | 2.4375 | N05500 | – | – | – | – | – |
Yaman Steel is the largest manufacturer and exporter of Pipe, Fittings, Flanges in Mumbai, India, known for delivering high-quality products to clients across the globe. With state-of-the-art manufacturing facilities and a team of skilled professionals, the company ensures flanges with superior strength, durability, and reliability that meet international standards. Yaman Steel offers a wide range of sizes, grades, and specifications, catering to industries such as oil and gas, petrochemical, power, and water treatment. For inquiries and orders, contact us at sales@pipefittingsflanges.com.
You’ll find Monel Spectacle Flanges commonly used in industries that require pipeline isolation, maintenance, or flow diversion. They’re typically found in chemical processing plants, oil and gas pipelines, marine systems, offshore platforms, and water treatment facilities. Additionally, they play a crucial role in power generation, refineries, and equipment that handles corrosive fluids. Their ability to ensure safe and reliable flow control, combined with their corrosion resistance and long service life, makes Monel Spectacle Flanges vital for critical piping systems.
